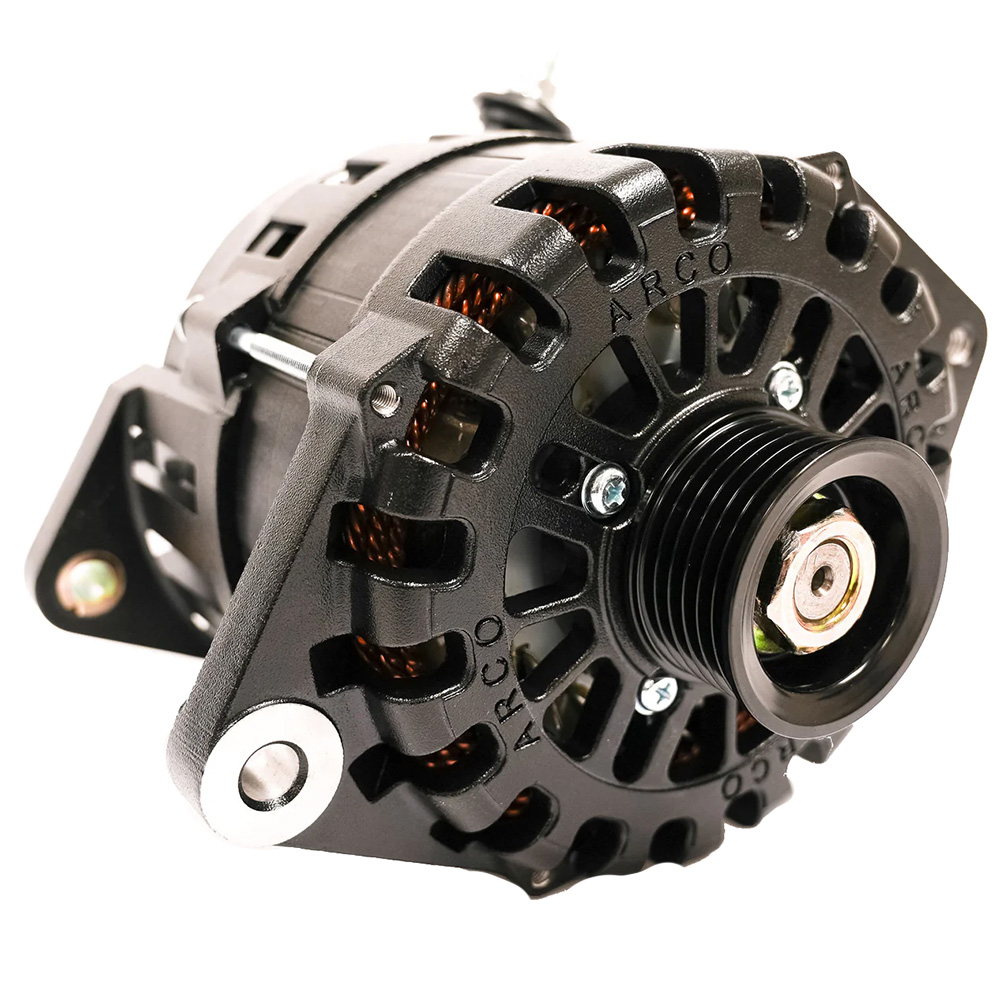

The ARCO Zeus A8000-48V 8kW Marine Alternator delivers exceptional high-output charging performance for 48-volt marine, RV, military, and commercial applications. Engineered with a native 48V rotor design, this alternator turns on at lower RPMs, runs significantly cooler, and provides more power than competing 48V alternators that are larger and heavier.
This high-performance alternator continuously generates over 3kW (55 Amps) at just 2,500 RPM and nearly 6kW (111 Amps) at 4,000 alternator RPM. In real-world applications, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio generates just over 5kW (97 Amps), while a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio produces over 3kW (55 Amps). Unlike competitor alternators that simply adapt 12V rotors for 48V use, the Zeus A8000-48V utilizes a purpose-built 48V rotor and field current for superior efficiency and cooler operation at all RPM ranges.
Key Features:

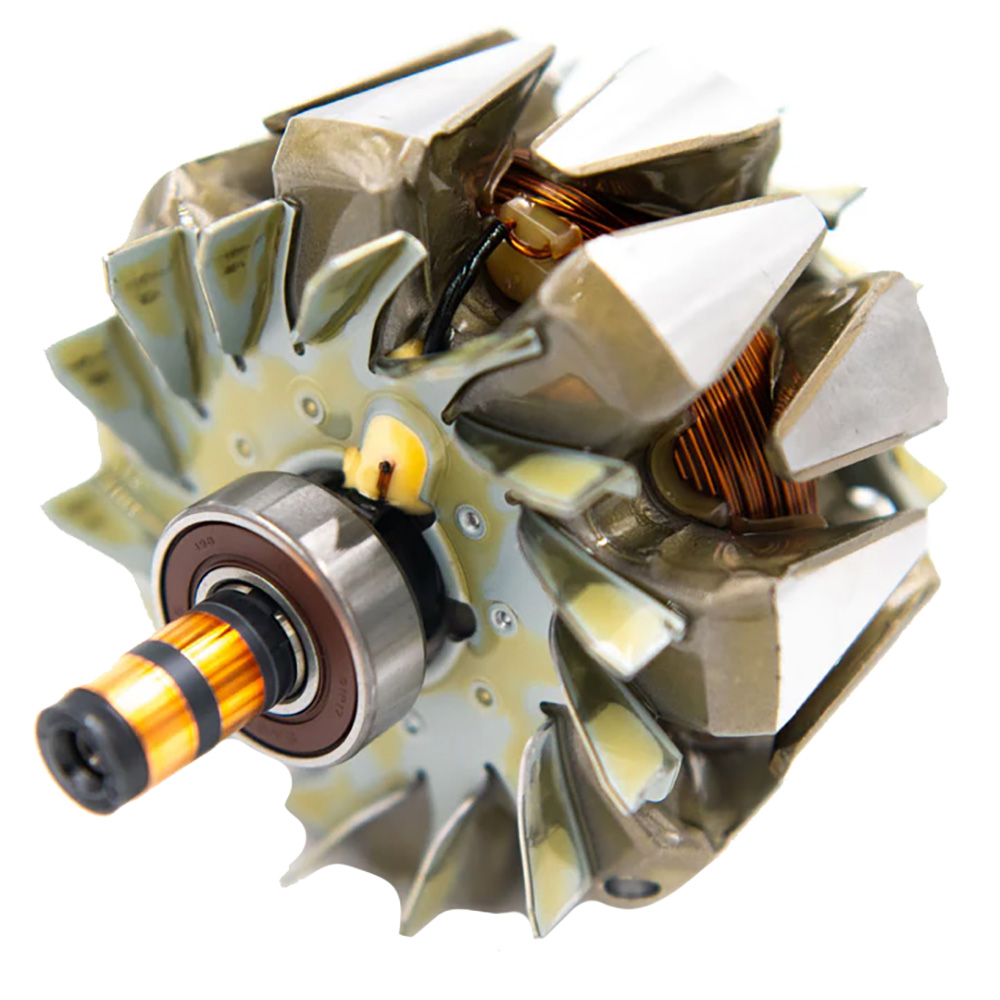

- Native 48V rotor design for optimal efficiency and reduced heat generation
- Advanced thermal management with heat-shedding coatings, dual cooling fans, and exterior-mounted rectifier
- Optimized for high output at idle speeds, reducing generator dependency
- E-Coat/Cerakote finish maintains cooler operating temperatures for sustained high-amperage output
- Rapidly charges large 48V battery banks
- Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance and lithium battery charging
- OEM-quality components throughout
- SAE J1171 Certified
- Proudly manufactured in the USA
Technical Specifications:
- Voltage: 48V DC
- Field Type: P-type
- Rotor Poles: 16

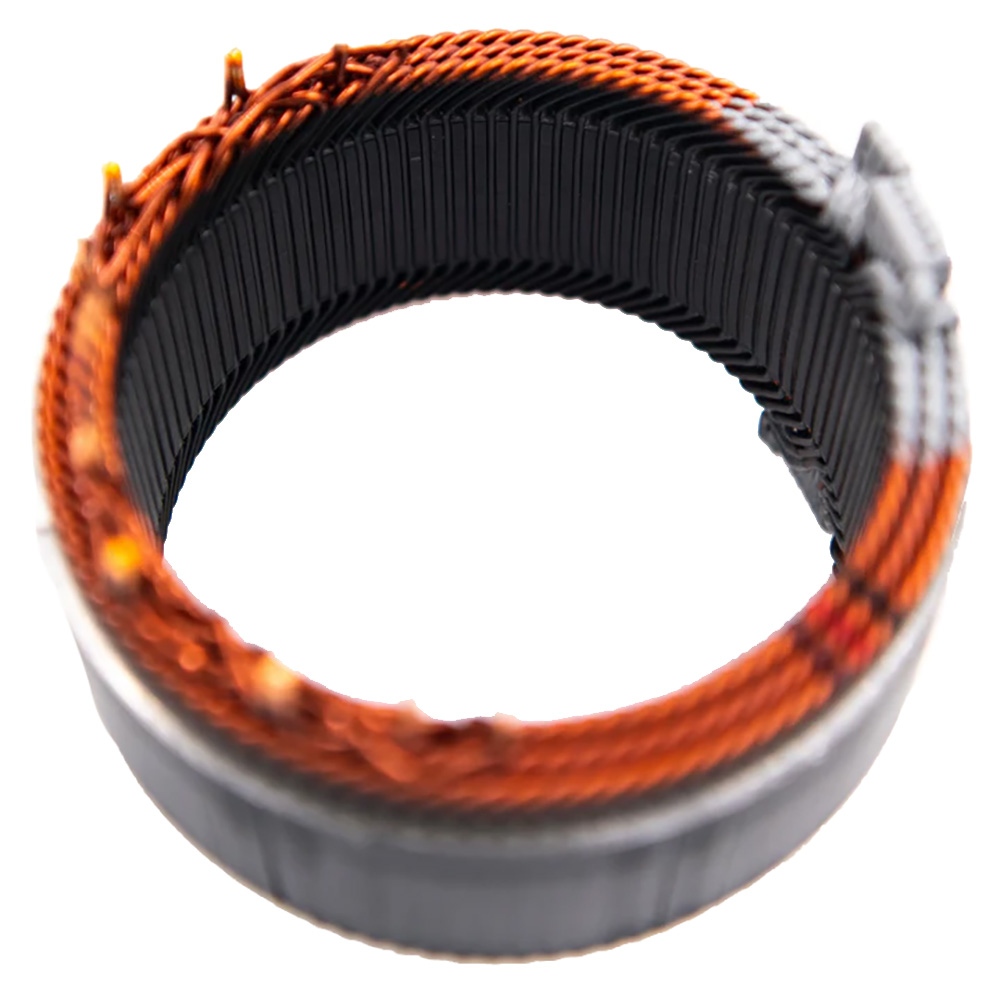

- Stator Size: 138mm
- Frame Size: Large
- Weight: 15.89 lbs (7.2 kg)
- Regulation: External only (requires external regulator)
- Finish: Black E-coating
- Cut-In RPM: 1,920 alternator RPM
- Maximum Alternator RPM: 19,000
- Battery Post: M8 threaded post, side mount
- Standard Pulley: 49K6 (6-groove, 49mm diameter)
- Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware: M17 x 1.5 x 24mm nut with 18mm ID x 29mm OD washer (included)
- Diodes: 6 positive, 6 negative, 80A rated avalanche diodes
- Maximum Output (Cold, 9,000 RPM at 53.5V): 180 Amps / 9,360 Watts / 14.8 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM at 53.5V): 138 Amps / 7,383 Watts / 10.5 kW PTO
- Sustained Idle Output (Hot, 2,500 RPM at 53.5V): 78 Amps / 4,173 Watts / 6 kW PTO
- Maximum Continuous Operating Temperature: 100°C (212°F)
Application: Designed with isolated ground for Yanmar Common Rail engines introduced after 2013, including JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, and 4JH110 models. Requires external voltage regulator (sold separately).
