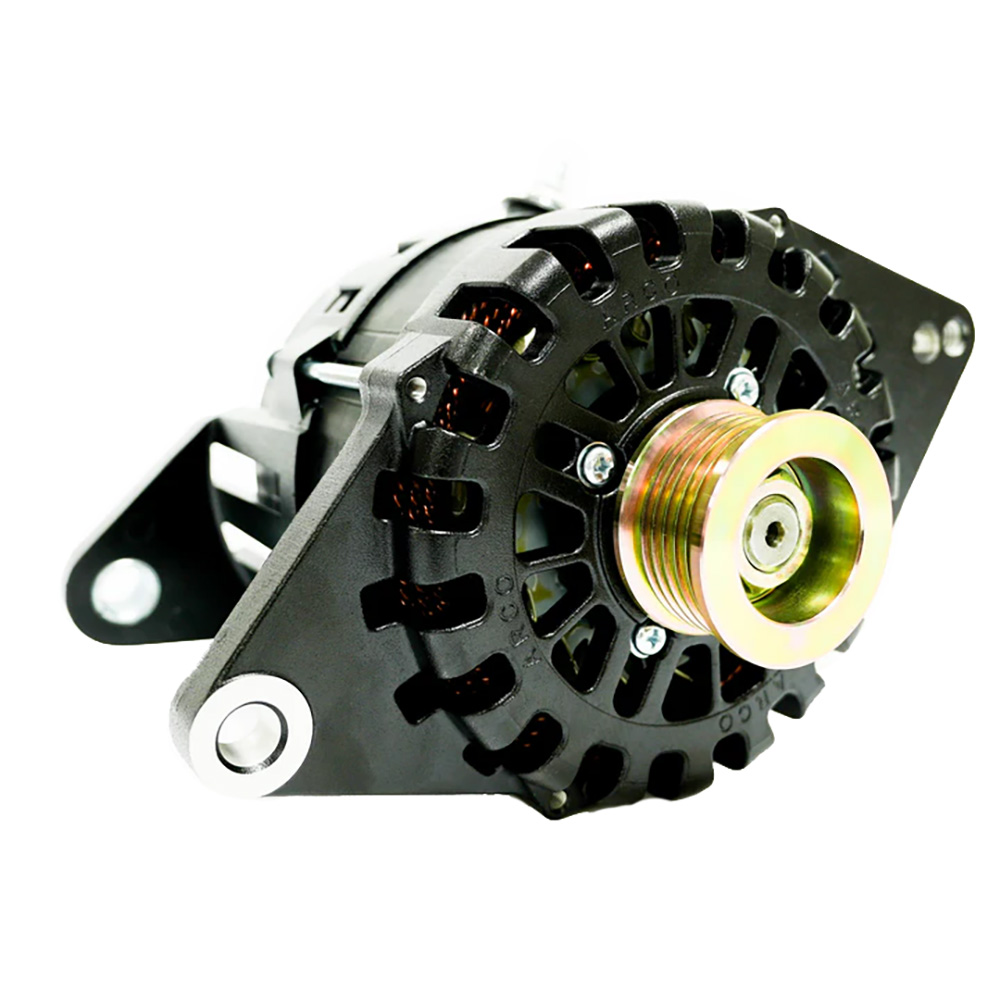

The ARCO Zeus A8000-48V is a high-performance 48-volt marine alternator engineered to deliver exceptional power output while running cooler and lighter than competitive units. This 8kW alternator features a native 48V rotor design that continuously generates over 3kW (55 Amps) at 2,500 RPM and nearly 6kW (111 Amps) at 4,000 alternator RPM. In real-world applications, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio produces just over 5kW (97 Amps), while a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio generates over 3kW (55 Amps).
Unlike competitor alternators that repurpose 12V rotors for 48V applications, the ARCO Zeus utilizes a purpose-built 48V rotor and field current. This design eliminates the need for external regulators to drastically reduce field current by up to 78%, resulting in cooler operation, improved efficiency, and extended component lifespan. The unit features heat-shedding coatings, externally-mounted rectifier, dual cooling fans, and E-Coat/Cerakote finish to maintain optimal operating temperatures for sustained high-amperage output.
Key Features:

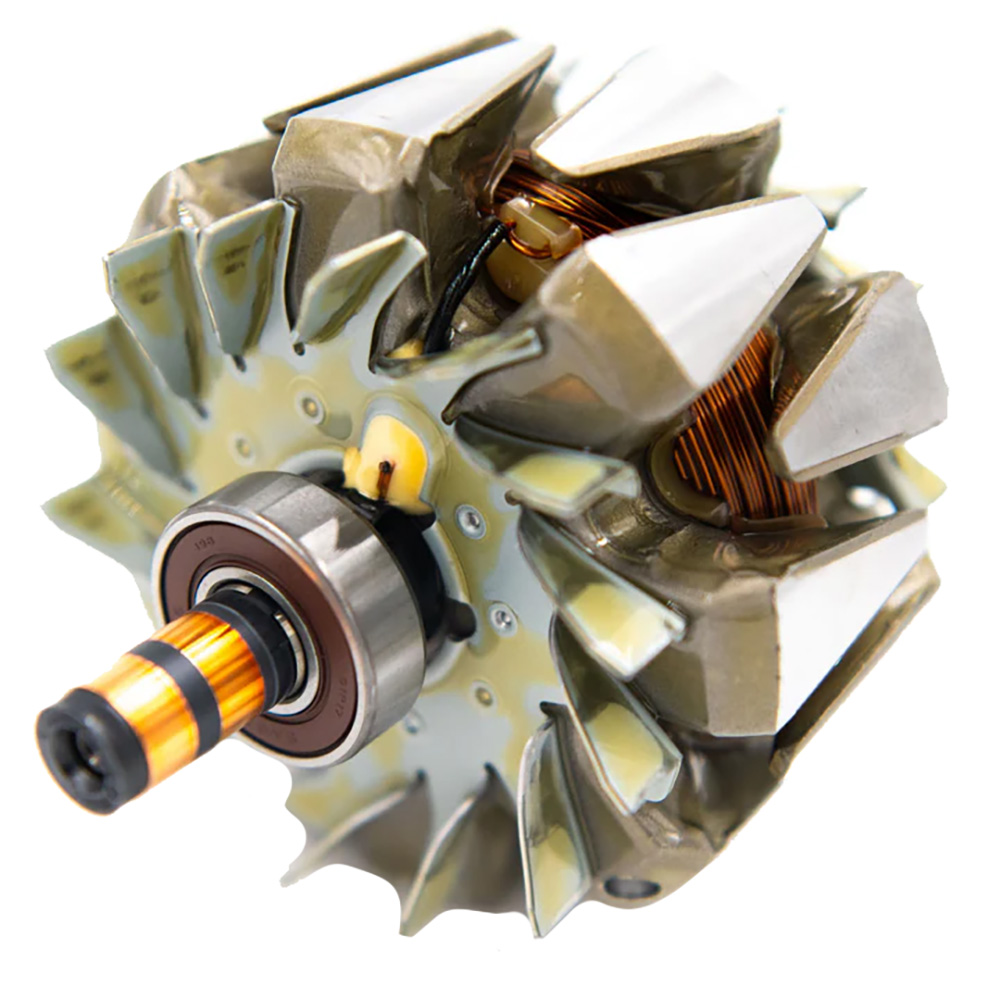

- Native 48V rotor design for superior efficiency and cooler operation
- Low cut-in RPM (1,920 alternator RPM) optimized for idle speed performance
- Advanced thermal management with dual cooling fans and heat-shedding coatings

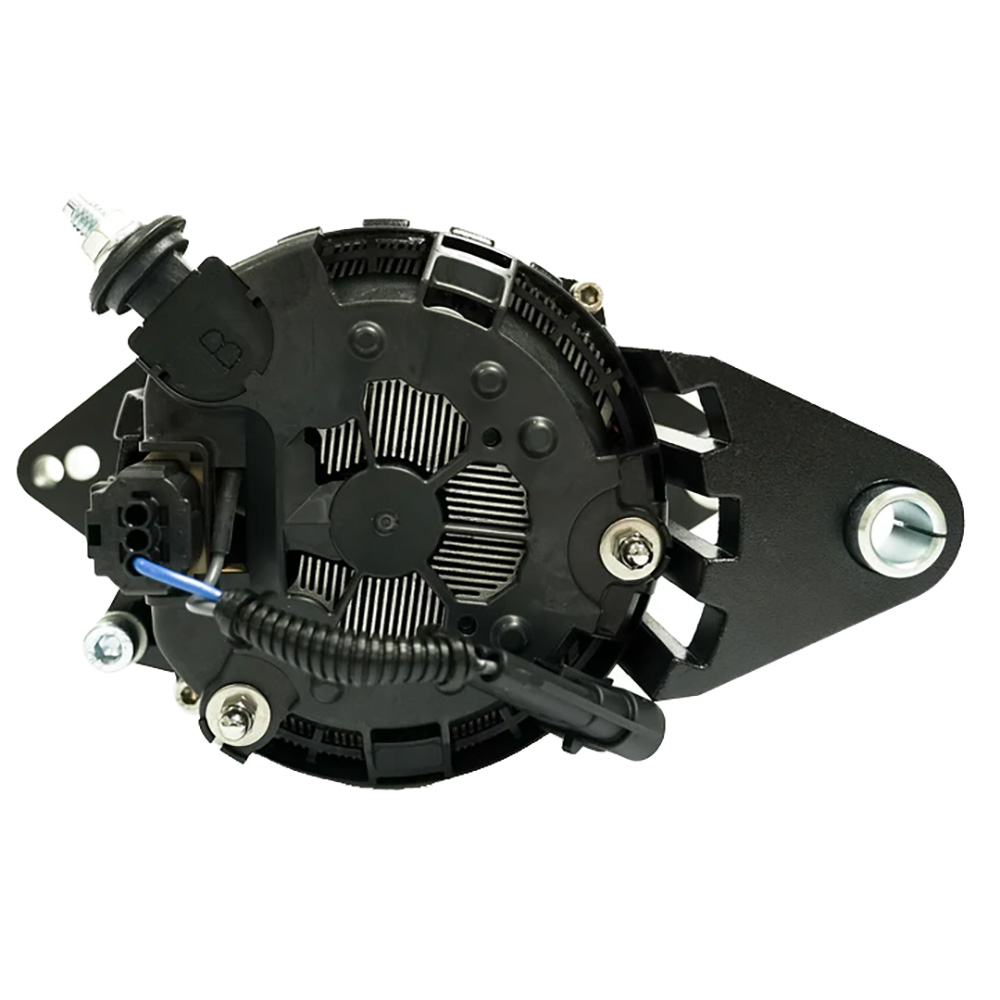

- Externally-mounted rectifier for improved heat dissipation
- SAE J1171 certified for marine applications
- Compatible with ARCO Zeus Bluetooth Alternator Regulator for lithium battery charging
- Replaces most Volvo Penta alternators with 4-inch J180 saddle-style mount
- Suitable for marine, RV, military, and commercial applications
- Proudly manufactured in the USA
Technical Specifications:
- Voltage: 48V DC
- Maximum Output: 180 Amps (9,360 Watts) at 9,000 RPM cold
- Sustained Cruising Output: 138 Amps (7,383 Watts) at 6,000 RPM hot
- Sustained Idle Output: 78 Amps (4,173 Watts) at 2,500 RPM hot
- Field Type: P-type (external regulation only)
- Rotor Poles: 16-pole design
- Stator Size: 138mm
- Cut-In RPM: 1,920 alternator RPM
- Maximum Alternator RPM: 19,000
- Diodes: 6 positive, 6 negative, 80A rated avalanche-type
- Weight: 15.89 lbs (7.2 kg)
- Maximum Operating Temperature: 212°F (100°C)
- Finish: Black E-coating
- Battery Post: M8 threaded post, side mount
- Standard Pulley: 49K6 (6-groove, 49mm)
- Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Mounting: 4-inch J180 saddle-style mount
This high-output alternator rapidly charges large battery banks and reduces the need for generator runtime by creating substantial auxiliary power directly from your engine. The included pulley hardware consists of an M17 x 1.5 x 24mm nut with 18mm ID x 29mm OD washer.
