Outboard Motor Brackets

What Are Outboard Motor Brackets?

Outboard motor brackets are the critical hardware that attaches an auxiliary or kicker outboard motor to your boat's transom, swim platform, or railing. Outboard motor brackets do far more than simply hold an engine in place — they allow you to precisely control motor depth, raise the motor clear of the water when it's not in use, and secure a backup power source exactly where you need it on the water.

Whether you're a tournament angler who relies on a kicker motor for controlled trolling speed, a sailboat captain carrying a backup outboard, or a pontoon boat owner adding a secondary motor for peace of mind, the right bracket is what makes the installation safe, stable, and functional.

How Outboard Motor Brackets Work

Most modern outboard motor brackets mount to the boat's transom or swim platform and feature an adjustable arm that pivots up and down. Adjustable brackets enable you to easily lower your outboard into the water for use or raise it out of the water where it is stored when not in use. Spring-loaded or torsion-spring mechanisms counterbalance the motor's weight, making it possible to raise and lower even a fairly heavy engine with minimal effort. Multiple locking positions along the bracket's range of travel let you fine-tune propeller depth for optimal performance in varying water conditions.

Materials matter enormously in the marine environment. Most quality brackets are constructed from powder-coated aluminum, hard-coat anodized aluminum, or 304 stainless steel — each offering a different balance of weight, corrosion resistance, and durability in both fresh and saltwater environments. When shopping, always verify that the bracket's rated horsepower and weight capacity exceed your motor's actual specifications, and confirm compatibility with your motor's shaft length — short shaft and long shaft motors require different setback and depth adjustments.

Types of Outboard Motor Brackets

• Transom-Mount Adjustable Brackets: The most common type, mounted to the vertical face of the stern. Available in spring-assist and manual-lift configurations to accommodate motors from small 2-stroke kickers up to 35 HP four-stroke engines.
• Swim Platform Brackets: Designed to mount on an existing swim platform, these brackets keep the auxiliary motor out of the way while still ready to deploy at a moment's notice.

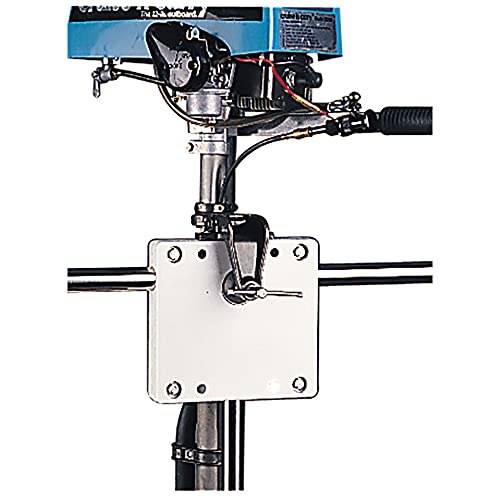

• Rail-Mount Brackets: Attach to the boat's stern railing, providing a space-saving option for storing a small outboard motor on sailboats and dinghies.
• Transom Support Plates & Set-Back Brackets: Used to reinforce the mounting area, distribute engine weight evenly, and add additional setback distance when direct-to-transom mounting is difficult or impossible.

Top Brands in Outboard Motor Brackets

PantherPro is the dominant name in this category for good reason. Their lineup spans aluminum and stainless steel adjustable brackets rated for 2- and 4-stroke motors, with models handling up to 35 HP and 263 lbs. Stainless steel torsion springs counterbalance motor weight, and the brackets meet ABYC standards — a key indicator of build quality and safety compliance.

T-H Marine brings its well-known marine accessories engineering expertise to the bracket category, offering aluminum bracket and stainless steel spring designs well-suited for kicker motors, as well as innovative jack plate solutions like the Mini Jacker™ that allow long-shaft motors to be mounted on shorter-transom boats.

Panther Drive Belts rounds out the category with a broad selection of bracket options, ensuring compatibility across a wide range of boat types and motor sizes.

Dock Edge is a respected marine hardware brand known for quality dock and boat accessories, offering bracket solutions for boaters seeking reliable, practical mounting options.

Key Considerations When Buying an Outboard Motor Bracket

• Motor weight and HP rating: Always choose a bracket rated above your motor's actual weight and horsepower.
• Shaft length compatibility: Confirm whether your motor uses a short or long shaft and that the bracket accommodates the required depth.
• Material and environment: Stainless steel is ideal for saltwater use, while anodized aluminum works well in freshwater and offers a lighter weight option.
• Mount type: Consider where on your boat the bracket will be installed — transom, swim platform, or railing — and choose the appropriate style.
• Adjustability: Spring-assisted brackets make raising and lowering a heavy motor far easier and reduce strain over a long day on the water.
