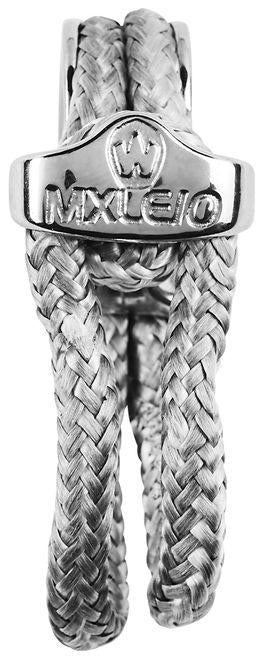

Wichard 21104W MXLEvo Soft Block Rope Size Blocks - 10 10mm 13/32

The Wichard MXLEvo 10 is a high-performance soft block engineered for heavy-load sailing applications, accommodating ropes up to 10mm (13/32") in diameter. Constructed from duplex stainless steel and Dyneema® SK78, this compact friction block delivers outstanding strength-to-weight performance for both amateur and professional yachtsmen.

Key Features:

• Heavy-Load Design: Optimized for high-load, low-rope-movement-speed applications including mast foot blocks, halyard tackles, barber haulers, block-and-tackle systems, sheet returns, and large sail feet
• Complete Kit: Delivered ready to install with a Dyneema SK78 loop included — no specialized tools or technical expertise required
• Rope Housing: Integrated stainless steel rope housing retains the rope inside the block when the system is unloaded, preventing accidental disengagement
• No Maintenance Required: Contains no moving parts (no sheave), making it virtually maintenance-free and highly reliable over time
• Exceptional Strength-to-Weight Ratio: Twice as robust and half the weight of comparable standard blocks, while being a third of the size
• Adaptable Mounting: The Dyneema loop can be oriented in two positions, allowing easy adaptation to chain plates, head ropes, or any other anchoring point
• Premium Materials: Duplex stainless steel hardware paired with Dyneema® SK78 loop for corrosion resistance and long service life

Specifications:

• Maximum Rope Size: 10mm (13/32")
• Working Load Limit (WLL): 1,760 lbs (800 kg)
• Breaking Load: 4,400 lbs (2,000 kg)
• Weight: 0.088 lbs
• Safety Factor: 5:1 (Breaking Load ÷ 5 = WLL)
• Loop Material: Dyneema® SK78
• Hardware Material: Duplex Stainless Steel

The MXLEvo 10 is part of Wichard's three-size MXLEvo soft block lineup and is an ideal solution for cruising and racing yachts where space, weight, and reliability are critical priorities.
