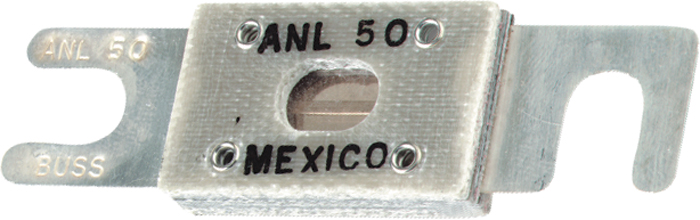

Use with ANL Fuse Blocks for many applications with 35-750 Amp loads.
Approved for use aboard gas-powered boats. Ignition protected when used in Blue Sea Systems' fuse blocks. 50-300A fuses use 5003. Tin-plated blades connect to 5/16" studs. Blown condition is visible through window. 5000A interrupt capacity. Max 32V DC.
- 6,000 Amp Interrupt Rating satisfies ABYC requirements for main DC circuit protection on large battery banks
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown fuse condition
- Ignition protected (conforming to SAE J1171)-safe for installation aboard gasoline powered boats (35-500 Amp only)
- For use with Blue Sea Systems' ANL Fuse Blocks
- Sold individually
Specifications
- Approvals: Meets ISO 8846 Marine, SAE J1171 Marine for ignition protection
- Ignition Protected: Yes Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.
- Maximum Voltage: 32V DC
- Interrupt Capacity, The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage: 6000A @ 32V DC
- Weight: 0.05lb (0.02 kg)
