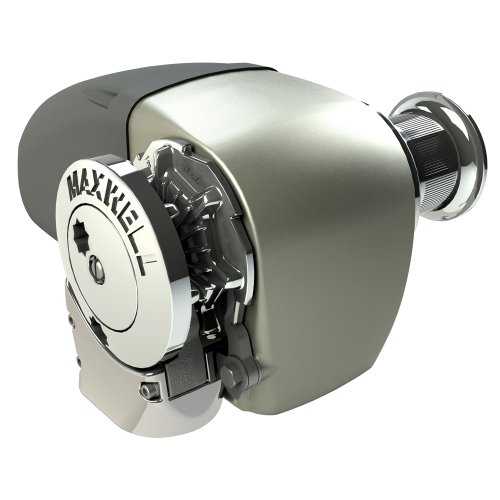

Maxwell HRC101012V HRC10 Horizontal Windlass 12V Capstan 3/8" Chain 5/8" Rope

The Maxwell HRC101012V HRC10 horizontal rope/chain windlass is a fully automatic, above-deck anchor windlass with a horizontal drum and capstan. It runs on 12 VDC with a 1200 watt motor and handles 3/8" chain or 5/8" rope, including the rope-to-chain splice. It is designed for larger vessels up to 16 meters (52') that need a completely above-deck installation.

Key Specifications:

• Maximum capacity: 1870 lb.
• Handles 3/8" chain or 5/8" rope, including the rope-to-chain splice
• 12 VDC, 1200 watt motor
• Horizontal drum with capstan

Included:

• Circuit breaker
• Up/down switch
• Emergency free-fall lever

Features:

• Wave Design™ chainwheel with outer ribs angled forward to guide rope and chain smoothly during anchor retrieval, and opposite-facing inner ribs that grip the rope in a wave pattern. This holds the rope more securely and is gentler on the rode.
• The chainwheel accommodates a range of chain pitch differences within the specified chain sizes.
• Maxwell wrap-around horizontal chainwheel uses more than 90° of the wheel for improved rope and chain handling.
• Also works with all-chain rodes.
• Above-deck design encloses the motor and drive in a two-part watertight case, saving space below deck.
• Case has a die-cast, marine-grade hard anodised alloy front section and a removable composite motor cover, so routine maintenance can be done on deck.
• Stainless steel pressure arm keeps control pressure on the rope, splice or chain.
• Integral chain pipe and a large through-deck hawse pipe throat ease entry of the rode into and out of the anchor locker.
• Cone-type clutch/brake allows manual free-fall anchoring and emergency crank recovery of the rode and anchor.
• Sealed oil bath and marine-grade hard anodised alloy gearbox with a precision worm and wormwheel drive.
• Simple bolt-down installation.
