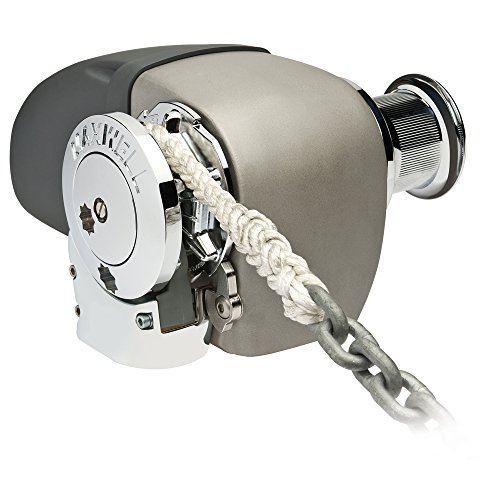

Maxwell HRC10812V Horizontal Windlass 12V 5/16" Chain 5/8" Rope

The Maxwell HRC10812V is a fully automatic horizontal windlass designed for boats up to 45 feet. This versatile windlass effortlessly retrieves and deploys 8mm (5/16") chain and 16mm (5/8") three-strand or 8-braid rope, making it ideal for cruising and anchoring applications.

Key Features:

• Patented Wave Design chainwheel accommodates any 5/16" or 8mm marine-grade chain spliced to 5/8" rope
• Two-part watertight case with anodized aluminum construction saves valuable below-deck space
• Die-cast marine-grade hard anodized alloy front section with removable composite motor cover for easy maintenance
• Unique wrap-around horizontal chainwheel design uses more than 90% of the wheel for superior rope and chain handling
• High-quality stainless steel chainwheel and pressure arm provide maximum control over the rode
• Sealed oil bath and marine-grade hard anodized alloy gearbox delivers high-efficiency output via precision worm drive
• Cone-type clutch/brake mechanism permits manual free-fall anchoring and emergency hand-crank recovery
• Integral chain pipe and large through-deck hawse pipe throat ensure smooth rode entry into anchor locker
• Simple bolt-down installation for rapid on-deck setup
• Works effectively with all-chain rodes for maximum holding power

Complete Kit Includes:

• HRC10812V windlass with capstan
• On/off breaker panel
• Reversing solenoid
• Up/down panel switch
• Clutch release handle

Specifications:

• Maximum pull: 1,540 lbs
• Chain size: 5/16" or 8mm short link
• Chain retrieval speed: 79 feet per minute
• Rope size: 5/8" (nylon 3-strand or 8-braid)
• Rope retrieval speed: 65 feet per minute
• Voltage: 12V DC
• Motor power: 1,000 watts
• Weight: 42 lbs

Backed by Maxwell's exclusive 3-year limited warranty, the HRC10812V combines innovative engineering with rugged marine-grade construction for reliable anchoring performance.
