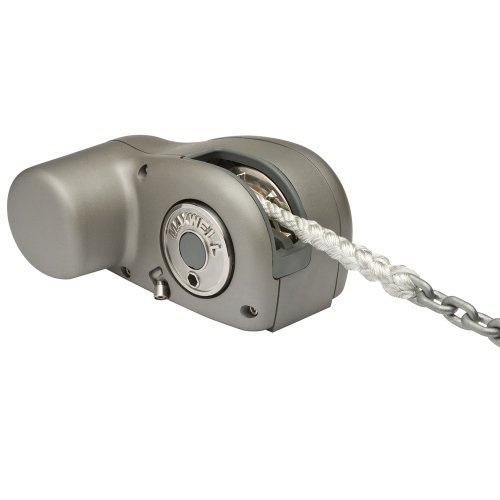

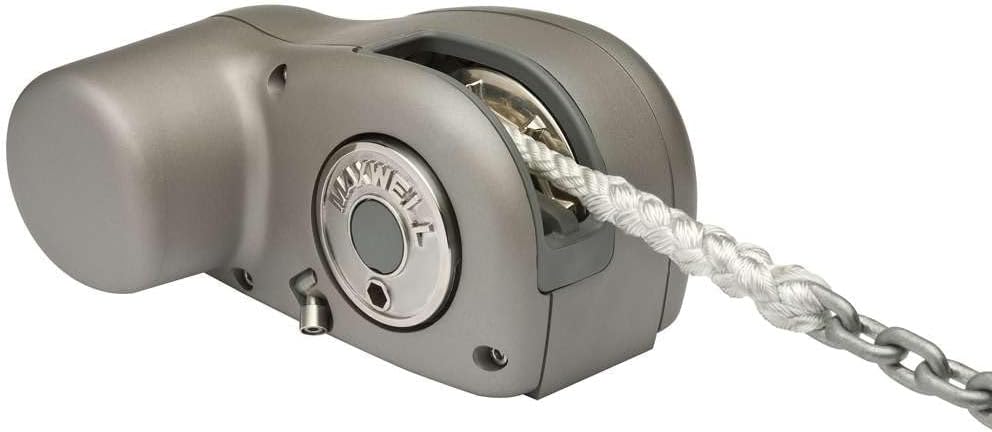

Maxwell HRCFF612V HRC6 Horizontal Windlass 12V 1/4" Chain 1/2" Rope

The Maxwell HRCFF612V HRC6 is a compact horizontal rope/chain windlass designed for efficient anchor retrieval on boats and yachts. This innovative windlass features Maxwell's patented automatic rope-to-chain transition system, ensuring smooth, jam-free operation as your rode feeds through the unit. The free-fall model allows rapid anchor deployment in emergency situations or power loss scenarios.

Key Features:

• Simple bolt-down installation for quick on-deck mounting with no complex below-deck modifications required
• Patented pressure arm system guarantees trouble-free transition from rope to chain within a safe, enclosed design
• Integrated composite nylon through-deck hawse pipe provides smooth, snag-free rode operation
• High-efficiency spur gearbox with robust non-backwind mechanism prevents accidental rode release
• Automatic free-fall technology enables controlled rapid anchor deployment—simply activate the lever and use your down control to free-fall the anchor, then activate up control to automatically re-engage powered retrieval
• Revolutionary chainwheel design ensures smooth guidance of both rope and chain during retrieval
• Heavy-duty dual-direction motor with integrated wiring for quick electrical installation and easy brush maintenance
• Watertight marine-grade die-cast alloy case with hard anodizing for maximum corrosion resistance
• Compact above-deck design saves valuable below-deck space while simplifying routine maintenance access

Specifications:

• Maximum working load: 900 lbs
• Chain size: 1/4" short link
• Rope size: 1/2" nylon
• Retrieval speed: 108 feet per minute
• Power supply: 12V DC
• Motor power: 600 watts
• Weight: 25 lbs

The HRC6 windlass is ideal for recreational vessels requiring reliable anchor handling with both rope and chain rode configurations. The automatic free-fall feature provides added safety and convenience for quick anchoring situations.
