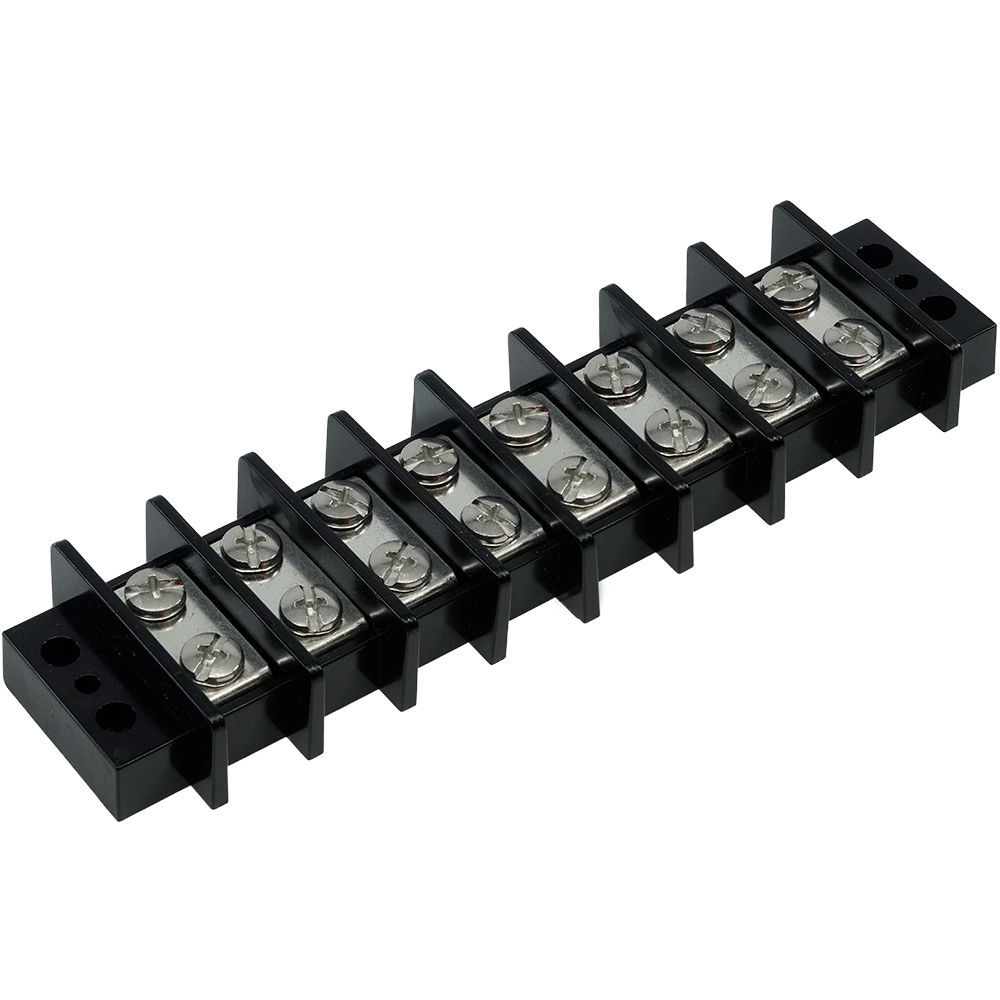

Egis Mobile Electric 2265-08 Terminal Block 65A 8 Circuit Marine Grade

The Egis Mobile Electric 2265-08 is a heavy-duty 8-circuit terminal block designed for marine, RV, and mobile electric applications requiring reliable power distribution. Rated for 65 amps continuous current, this terminal block features eight matching screw terminal connection pairs, each with one input and one output screw connected to separate copper alloy bus bars.

Key Features:

• 8 circuit pairs with screw terminal connections for secure wire attachment
• 65 amp continuous current rating per circuit
• 250 Volt AC/DC rated—supports 12V, 24V, 36V, and 48V DC systems, plus 120/240V AC applications
• Marine-grade construction with tin-plated copper alloy conductors and stainless steel hardware
• High-temperature insulation material for harsh environment durability
• Anti-rotation ribs on conductor strips prevent wire terminal rotation
• High insulation walls protect ring terminal splices from shorting to adjacent circuits
• 2000V AC dielectric strength for superior electrical isolation
• CE marked and RoHS compliant
• 4-year manufacturer warranty

Specifications:

• Continuous Current: 65 Amps per circuit
• Maximum Voltage: 250 Vac/Vdc
• Dielectric Strength: 2000 Vac
• Number of Circuits: 8 matching pairs
• Hardware: Stainless steel
• Conductor Material: Tin-plated copper alloy

Ideal for organizing and distributing power in boats, RVs, mobile workshops, and other applications where reliable electrical connections in challenging environments are essential.
