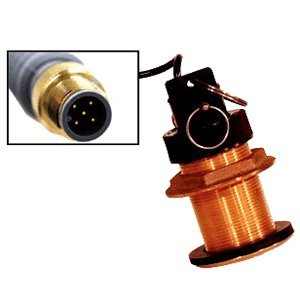

Furuno DT-800MSF Smart Sensor Transducer with Temp - Bronze Thru-Hull

The Furuno DT-800MSF is a high-performance smart sensor transducer featuring Airmar's B617V housing style with exclusive Broadband Ceramic Technology. Operating at 235 kHz, this transducer delivers exceptional resolution and sensitivity for precise depth readings in shallow and deep water applications.

Key Features:

• 235 kHz frequency with Broadband Ceramic Technology for superior resolution
• 100W RMS power rating for accurate depth readings from 0.45M (1.4') to 180M (600')
• Integrated fast-response temperature sensor with ±0.2°C (±0.1°F) accuracy
• Compact bronze thru-hull housing combines depth and temperature sensing
• NMEA 2000® compatible with 1 Hz data update rate
• Urethane acoustic window for reliable signal transmission
• 10-25 VDC smart sensor supply voltage, low 40 mA current draw
• Includes 6M standard cable length with LEN rating of 4

Technical Specifications:

• Minimum sounding depth: 0.5M (1.6')
• Maximum sounding depth: 180M (590')
• Pressure rating: 3M (10')
• Pulse rate: 20,000 pulses per nautical mile (5.6 Hz per knot)
• Weight: 1.5 kg (3.4 lbs)

The DT-800MSF's bronze construction and compact design make it ideal for marine applications requiring reliable depth and water temperature monitoring. The fast-response temperature sensor provides real-time readings, while the high-power transducer element ensures spot-on accuracy in both shallow coastal waters and offshore depths.
