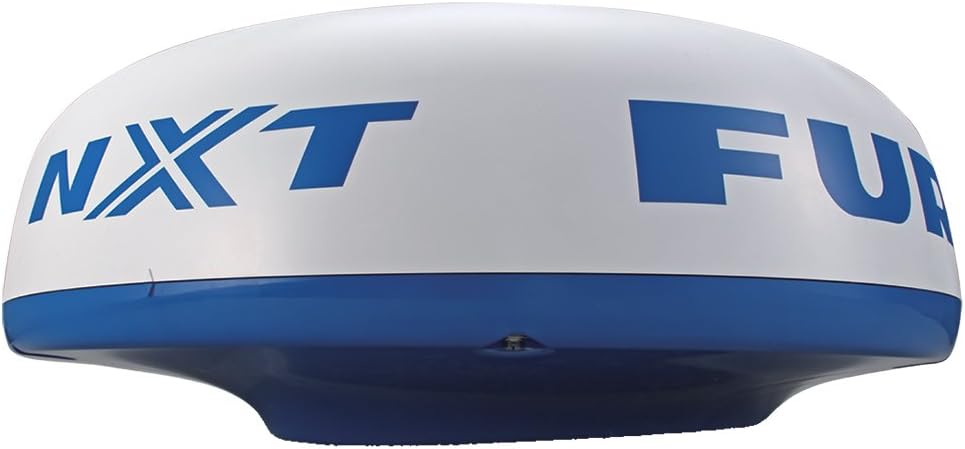

Furuno DRS4D-NXT 24" Solid-State Doppler Radar with Target Analyzer

The Furuno DRS4D-NXT represents a revolutionary leap in marine radar technology, combining solid-state reliability with advanced Doppler capabilities in a compact 24-inch radome. This next-generation radar system utilizes pulse compression technology to deliver open array performance without the complexity of traditional magnetron-based systems.

Revolutionary Target Analyzer™ Technology:

The DRS4D-NXT is the first radar in the world to feature Furuno's exclusive Target Analyzer™ function, which uses Doppler technology to automatically identify hazardous targets. Approaching vessels are displayed in red, while targets moving away or remaining stationary appear in green. Target colors dynamically change in real-time as their relative motion changes, dramatically improving situational awareness and navigation safety.

Key Features:

• RezBoost™ beam sharpening technology achieves an effective 2.0° horizontal beam width for exceptional target separation and clarity
• Fast Target Tracking™ displays target vectors within seconds, with Auto Target Acquire function for up to 100 targets
• Bird Mode automatically optimizes gain and sea clutter settings to help locate feeding birds and fish schools
• Solid-state design with instant on operation—no warm-up time required
• 25W output power with 48 nautical mile maximum range
• Adjustable antenna rotation speed: 24/36/48 RPM
• Simple installation with no need to open the radome, no external power supply required
• Smart-connector cable design allows retrofitting of existing DRS cable installations
• IP56 waterproof rating for reliable all-weather operation
• Operating temperature range: -25°C to +55°C

Compatibility:

Works with NavNet TZtouch (V4.21 or later), NavNet TZtouch2 (V3.01 or later), NavNet TZtouch3, NavNet TZtouchXL, and FR-10/FR-12 radar series. Requires compatible display unit and signal/power cable (sold separately).

Technical Specifications:

• Radar type: X-Band solid-state Doppler radome
• Horizontal beam width: 3.9° (-3dB)
• Vertical beam width: 25°
• Power supply: 12-24 VDC
• Minimum range: 20 meters
• Bearing accuracy: ±1°
• Ethernet connectivity via RJ45 port

This radar is supplied without cable. A compatible signal/power cable must be purchased separately for installation.
