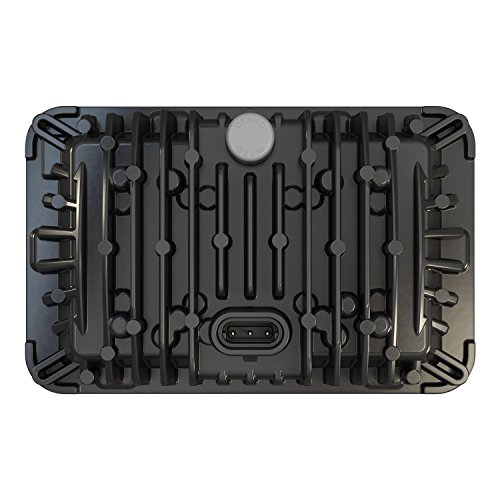

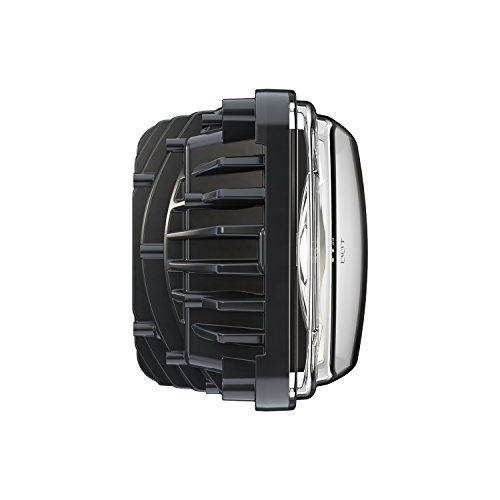

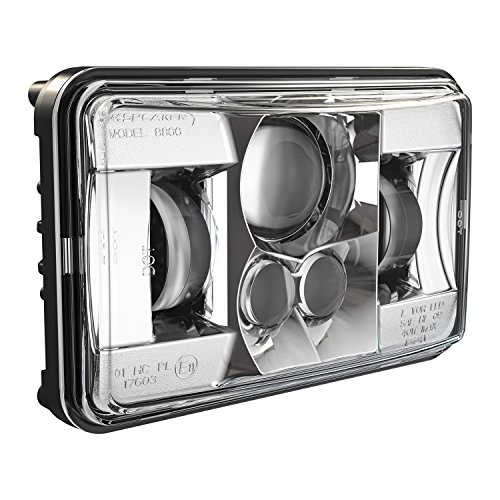

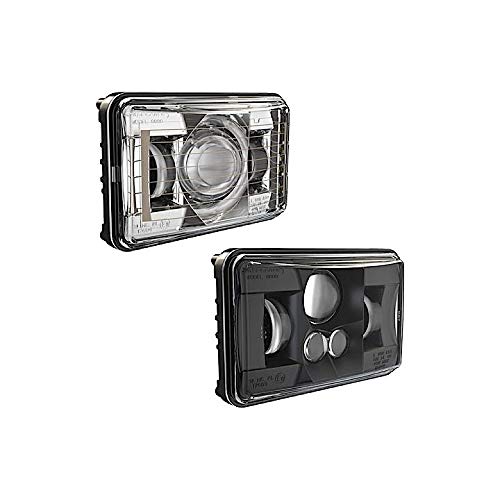

J.W. Speaker 0551371 Model 8800 Evolution 2 LED Low Beam Headlight 4x6 Chrome

The J.W. Speaker Model 8800 Evolution 2 is a high-performance 4x6 inch LED low beam headlight designed as a direct replacement for 1A1 and 2A1 sealed beam applications. This headlight is the industry's first to meet proposed NHTSA guidelines for a 5-Star NCAP-compliant low beam headlight, offering improved light output, glare reduction, and light placement for heavy-duty trucking applications.

Key Features:

• 12-24V DC operation (9-32V operating voltage range)
• Rectangular 4x6 inch format with chrome bezel
• Hardcoated polycarbonate lens with clear outer finish
• Die-cast aluminum housing for superior thermal management
• Low-profile panel mount design
• H4 connector (AMP #172615-2 mating connector)
• 2,830 raw lumen output
• 2.10A current draw at 12V DC / 1.00A at 24V DC
• DOT FMVSS 108, ECE Reg 112, and IP69K certified

This headlight operates reliably in extreme conditions from -40°F to 149°F and features right-hand traffic (RHT) beam pattern for use in North America and other RHT regions. The tough die-cast housing includes added protection from salt spray for efficient thermal management, making it ideal for commercial trucks, buses, construction equipment, and other heavy-duty applications.
