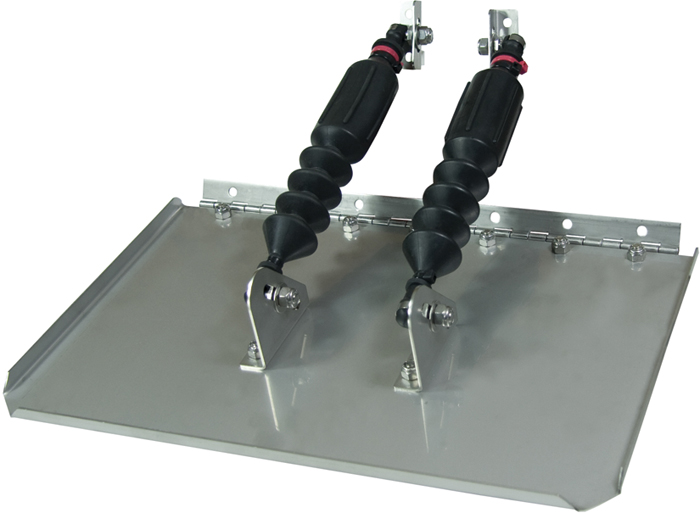

Nautical Technologies ST1610-120 Smart Tabs II Automatic Trim Tabs 16x10

The Nautical Technologies ST1610-120 Smart Tabs II are fully automatic trim tabs designed for boats 23 to 30 feet in length weighing up to 6,500 pounds. Ideal for fiberglass, aluminum, and RIB boats with transom widths under 10 feet, these innovative tabs require no switches, electric connections, or hydraulic systems—making them a maintenance-free solution for improved boat performance.

How They Work:

The ST1610 series features two nitrogen gas actuators per plate that automatically adjust to water pressure and boat speed. The tabs start in a downward position to maximize lift at slow speeds, helping minimize bow rise and allowing the boat to plane quickly. As speed increases and water pressure exceeds the actuator load rating, the plates move to a horizontal position to eliminate drag. Even while cruising, the tabs continuously adjust like shock absorbers, providing remarkable stability in turns, crossing waves, and at maximum speeds.

Key Features:

• 16-inch by 10-inch trim plates with dual nitrogen gas actuators per plate
• Increased stern lift with twice the reactive dampening
• Eliminates porpoising, sliding, and chine walking
• Reduces minimum planing speed by approximately 33%
• Improves acceleration, top speed, and fuel efficiency
• No through-hull drilling required
• Simple installation in under one hour with basic hand tools
• All mounting hardware, instructions, and templates included

Smart Tabs II provide an active suspension system that automatically increases stability and smooths your ride in rough seas without any pilot interface required. Just install and go.
