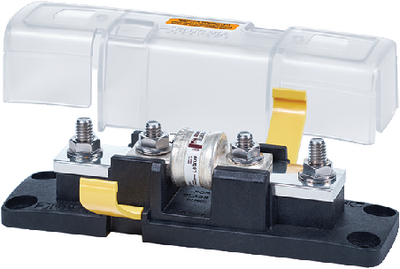

Blue Sea Systems 5007100 Class T Fuse Block with Insulating Cover, 110-200A

The Blue Sea Systems 5007100 Class T Fuse Block provides fast-acting circuit protection for inverters, battery systems, and other high-current marine and automotive electronics. Designed for Class T fuses rated from 110 to 200 amperes, this fuse block features a protective insulating cover that meets ABYC and USCG requirements for electrical safety.

Key Features:

• Four-stud design provides unobstructed access for installing large cable lugs around connecting terminals
• Insulating cover with breakouts allows wire entry from multiple directions while satisfying safety standards
• Stainless steel studs resist corrosion in marine environments and maintain secure connections under high heat
• One-piece stainless flange nuts ensure safe, reliable electrical connections
• Tin-plated copper mounting block for optimal conductivity
• UL 94-V0 rated base material provides superior heat resistance
• Ignition protected for use in gasoline engine compartments

Specifications:

• Maximum Amperage: 200A
• Amperage Range: 110-200A
• Maximum Voltage: 160V DC
• Cable Capacity: Up to 4/0 AWG
• Terminal Stud Size: 5/16"-18 (M8)
• Fuse Mounting Block Material: Tin-Plated Copper
• Ignition Protected: Yes

Ideal for protecting high-amperage DC circuits in marine, RV, and automotive applications where reliable overcurrent protection is critical.
