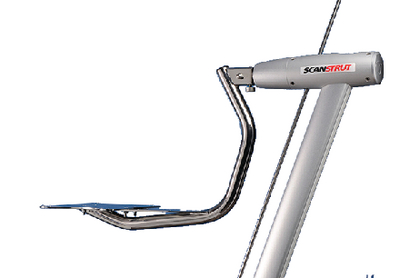

Scanstrut LMBA1 Self-Leveling Radar Mount for Backstay Installation

The Scanstrut LMBA1 is a self-leveling backstay radar mount designed specifically for Raymarine and Garmin 2kW and 4kW radar domes. This innovative mounting system ensures your radar antenna stays level with the horizon at all times, maintaining optimum performance even as your vessel heels or rolls.

Key Features:

• Hydraulic damping system eliminates minor oscillations while responding to major heel angle changes
• Sealed, maintenance-free passive system requires no power
• Lightweight head unit reduces weight aloft for better sailing performance
• Stainless steel radome cradle with fine-tune adjustment adapts to any backstay angle
• Nylon backstay bushing allows cable tension adjustment
• Marine grade 316 stainless steel construction ensures long-lasting durability

Construction:

• Premium machined and anodized aluminum pole and head unit
• Marine grade 316 stainless steel cradle and base plate

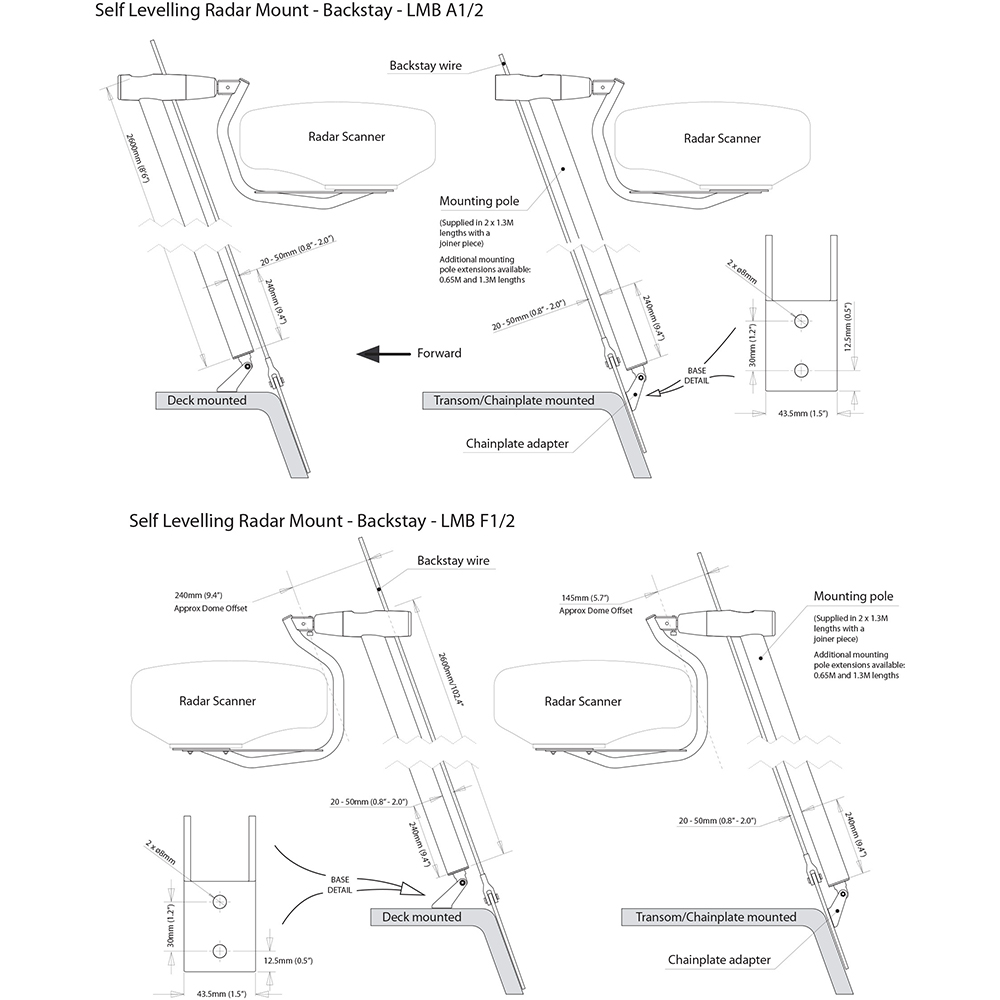

• 2.6m total pole length, supplied in two 1.3m sections
• Compatible with 7mm, 8mm, 10mm, and 12mm diameter backstay cables

Complete Kit Includes:

• 1x Leveling mount with integral backstay bushes
• 2x 1.3m mounting pole sections
• 1x Joiner piece for mounting pole
• 1x Universal base for mounting pole
• Complete fastening hardware pack

The LMBA1 prevents target loss and delivers the best possible radar picture by keeping your radar horizontal regardless of sea conditions. Additional 0.6m and 1.3m pole extensions are available separately for custom installations.
