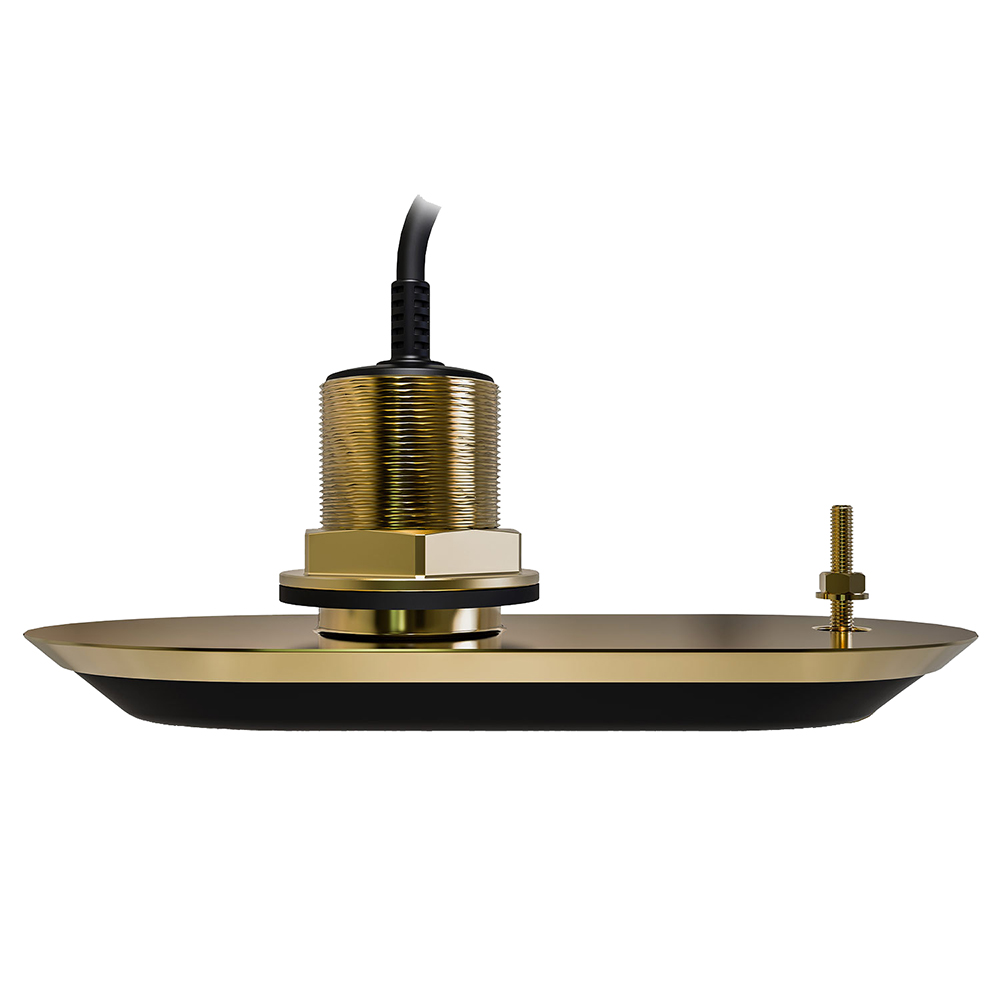

Raymarine A80469 RV-220S RealVision 3D Bronze Thru-Hull CHIRP Transducer Starboard 20 Degree

The Raymarine RV-220S RealVision 3D Bronze Thru-Hull CHIRP Transducer is a professional-grade sonar solution designed specifically for starboard-side installation on inboard and outboard boats. This individual replacement transducer delivers lifelike underwater imagery for superior fish finding and structure identification.

Advanced 4-Channel CHIRP Technology:

• Wide Spectrum CHIRP sonar operating on dual frequency bands: 50-60 kHz and 200-350 kHz
• Combines CHIRP DownVision, CHIRP SideVision, high frequency CHIRP fish targeting, and RealVision 3D sonar in a single housing
• Maximum power output of 600 watts for exceptional depth penetration and clarity
• Built-in Attitude and Heading Reference System (AHRS) stabilizes sonar imagery by automatically compensating for vessel motion

Marine-Grade Bronze Construction:

• Rugged cast-bronze thru-hull body suitable for fiberglass and wooden hulls
• Low-profile design minimizes drag and prevents cavitation
• Near-flush installation works great on trailered boats
• 20-degree internal offset accommodates hull deadrise angles from 14° to 26° without fairing blocks

Key Features:

• Integrated fast-response water temperature sensor for accurate readings
• Direct connect to Raymarine Axiom displays with included 2-meter (6.5 feet) pigtail cable
• Crystal-clear imagery even in waves, swells, and while maneuvering
• Starboard-side specific transducer (requires port-side unit and Y-cable for complete system)
• Measures depth and temperature simultaneously

This is an individual replacement transducer designed for starboard side installation. To create a complete RV-220 transducer system, you will need both a port and starboard transducer along with a RealVision 3D Y-cable and extension cable to reach your Raymarine Axiom RealVision display. The complete dual-transducer setup provides full 180-degree underwater coverage, ideal for boats with deep keels or underwater protrusions.
