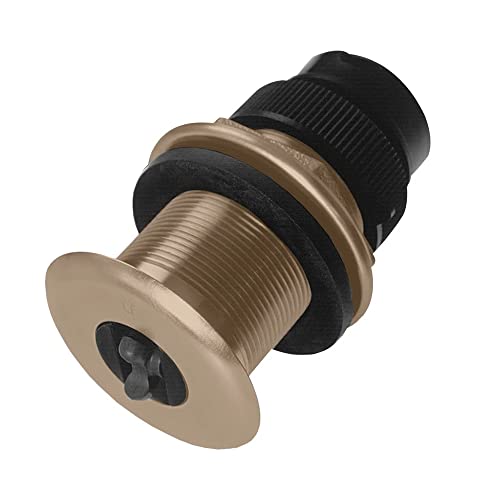

Furuno DST-810MSF NMEA2000 Depth Speed Temperature Thru-Hull Transducer

The Furuno DST-810MSF is a bronze thru-hull multisensor transducer that combines depth, speed, and temperature monitoring in a single compact unit with a 51mm (2") fitting. This all-in-one design simplifies installation by requiring only one hull penetration, making it ideal for both new boat construction and retrofit applications.

Built on the proven Airmar B617V housing platform, this smart sensor features NMEA2000 connectivity for seamless integration with modern marine electronics networks. The DST-810MSF includes wireless connectivity to Airmar's CAST App, enabling convenient calibration, depth offset adjustments, and sensor configuration from your mobile device.

Key Features:

• Integrated depth, speed, and water temperature in single bronze housing
• Patented speed signal processing with 5 Hz update rate for excellent accuracy below 5 knots
• Fast-response temperature sensor with ±0.2°C (±0.4°F) accuracy
• Wide fan-shaped fore-aft beam pattern finds bottom on deadrise hulls up to 22°
• Wireless calibration via Airmar CAST App
• Urethane acoustic window for reliable depth readings
• 51mm (2") thru-hull fitting

Technical Specifications:

• Depth Range: 0.5m to 70m (1.6' to 230')
• Maximum Deadrise: 22 degrees
• Paddlewheel Pulse Rate: 20,000 pulses per nautical mile (5.6 Hz per knot)
• Power Supply: 11.5 to 25 VDC
• Current Draw: 40 mA
• NMEA 2000 LEN: 4
• Standard Cable Length: 6 meters
• Pressure Rating: 3m (10')
• Data Update Rate: 1 per second

The DST-810MSF delivers smooth, linear speed output across all vessel speeds with exceptional low-speed accuracy, making it perfect for sailboats and displacement cruisers. The reliable temperature sensor provides true water temperature readings for navigation and fish-finding applications.
