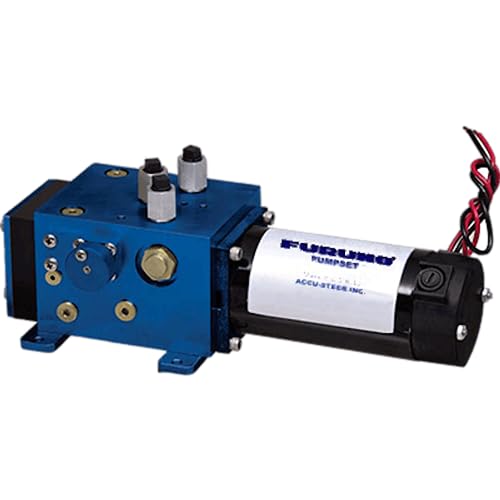

Furuno PUMPHRP35-12 Hydraulic Reversing Pump 12V Autopilot Medium Duty

The Furuno PUMPHRP35-12 is a medium-duty hydraulic reversing pump set designed to interface hydraulic steering systems with autopilot or electric steering control systems. This reliable 12 VDC pump unit enables automated steering control on marine vessels equipped with hydraulic steering.

Key Features:

• Adjustable output flow rate from 0 to 3.5 cubic inches per second for precise rudder speed control
• Compatible with hydraulic steering systems up to 50 cubic inches in volume
• Built-in pressure relief valves factory-set at 500 PSI for system protection
• Heavy-duty, high-efficiency drive motor with oversized brush gear and ball bearing construction
• Reversible gerotor gear pump design for reliable directional control
• Compact and rugged construction for easy installation and long-life operation
• Includes complete pump set with pressure regulator
• Compatible with most marine autopilot systems

The output flow rate determines rudder speed and is fully adjustable to match your vessel's steering system requirements. Designed for harsh marine environments, this medium-duty pump set provides dependable performance for recreational and commercial vessels with hydraulic steering systems.
