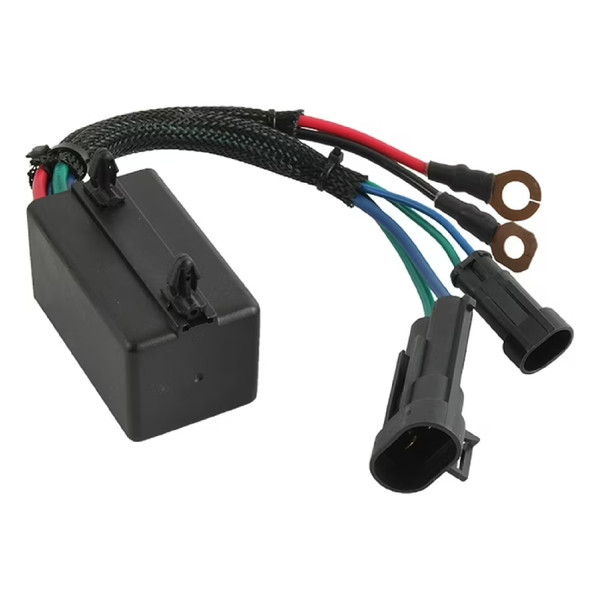

BRP US - PARTS 0586767 E-TEC Power Trim and Tilt Relay Cable Assembly

The BRP 0586767 is a genuine OEM trim and tilt relay cable assembly designed specifically for Evinrude E-TEC outboard engines. This complete assembly combines both the power trim relay and wiring harness in a single integrated unit, providing reliable electrical control for your outboard's trim and tilt system.

Key Features:

• Genuine BRP/Evinrude factory OEM part, not aftermarket
• Complete relay and cable assembly for simplified installation
• Designed for Evinrude E-TEC outboard engines from 15 HP to 300 HP
• Includes two connector plugs with large and small gauge wiring
• Features red B+ wire with eyelet and black B- wire with eyelet for battery connections
• Replaces OMC part numbers 586767 and Arrowhead TRM6001

Application:

This trim and tilt relay assembly is compatible with Evinrude E-TEC outboard engines from 2004 to 2017, including models ranging from 15 HP through 300 HP. It replaces the power trim relay system that controls the up and down movement of the outboard motor.

Technical Specifications:

• UPC: 745419305055
• Weight: Approximately 0.62 lbs
• Connector configuration: Plug #1 with large blue and green wires, Plug #2 with small blue wire, small green wire, plus battery eyelet connections
