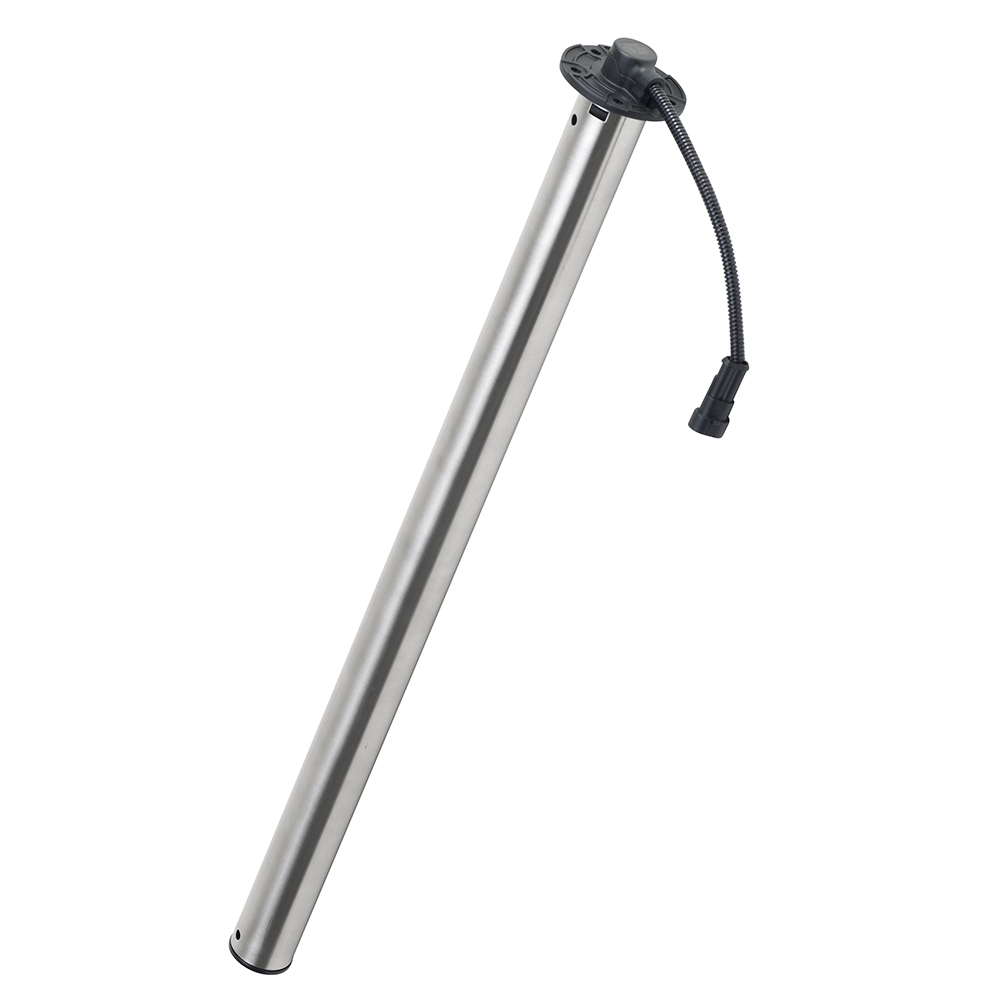

VDO Gauges A2C1747250001 Veratron Deep-Pipe Fuel Level Sender 500mm Stainless Steel

The VDO Veratron Deep-Pipe Level Sender is a precision fuel tank sensor designed for marine applications where accurate fuel level measurement is critical. This 500mm stainless steel sensor features a unique tubular design with an internal float that provides stable, reliable readings even in rough sea conditions.

Key Features:

• Anti-Slosh Design: 38mm diameter vertical tube with small holes at top and bottom acts as a baffle, stabilizing the float position regardless of fuel movement
• Durable Stainless Steel Construction: Corrosion-resistant tubular sensor suitable for fuel (gasoline, diesel, petroleum) and water applications
• 500mm Length: Ideal for medium-depth tanks (ensure minimum 4mm clearance from tank bottom when installed)
• 240 to 33 OHM Signal Range: Compatible with standard VDO fuel gauges and instrumentation
• Professional-Grade Connector: TE Superseal 2-pole connector with IP67 waterproof rating
• Wide Operating Range: Functions reliably from -25°C to 65°C (-13°F to 149°F) with 6-24 VDC voltage
• Easy Installation: Includes 5-hole SAE flange (54mm PA66 GF30), 200mm wiring harness, and complete installation hardware

Technical Specifications:

• Sensor Length: 500mm
• Tube Diameter: 38mm
• Resistance: 240 to 33 OHM (analog output)
• Operating Voltage: 6 to 24 VDC
• Operating Temperature: -25°C to 65°C (-13°F to 149°F)
• Protection Rating: IP67
• Mounting: 5-hole SAE flange, 54mm
• Includes compensation chamber for pressure equalization

What's Included:

• Deep-pipe level sensor with integrated float
• Installation kit with mounting hardware
• 200mm pre-wired harness with TE Superseal connector
• Installation instructions and safety documentation

This sensor is ideal for replacement or upgrade applications in boats, yachts, and other marine vessels requiring accurate fuel level monitoring. The compensation chamber design ensures accurate readings by equalizing pressure differences.
