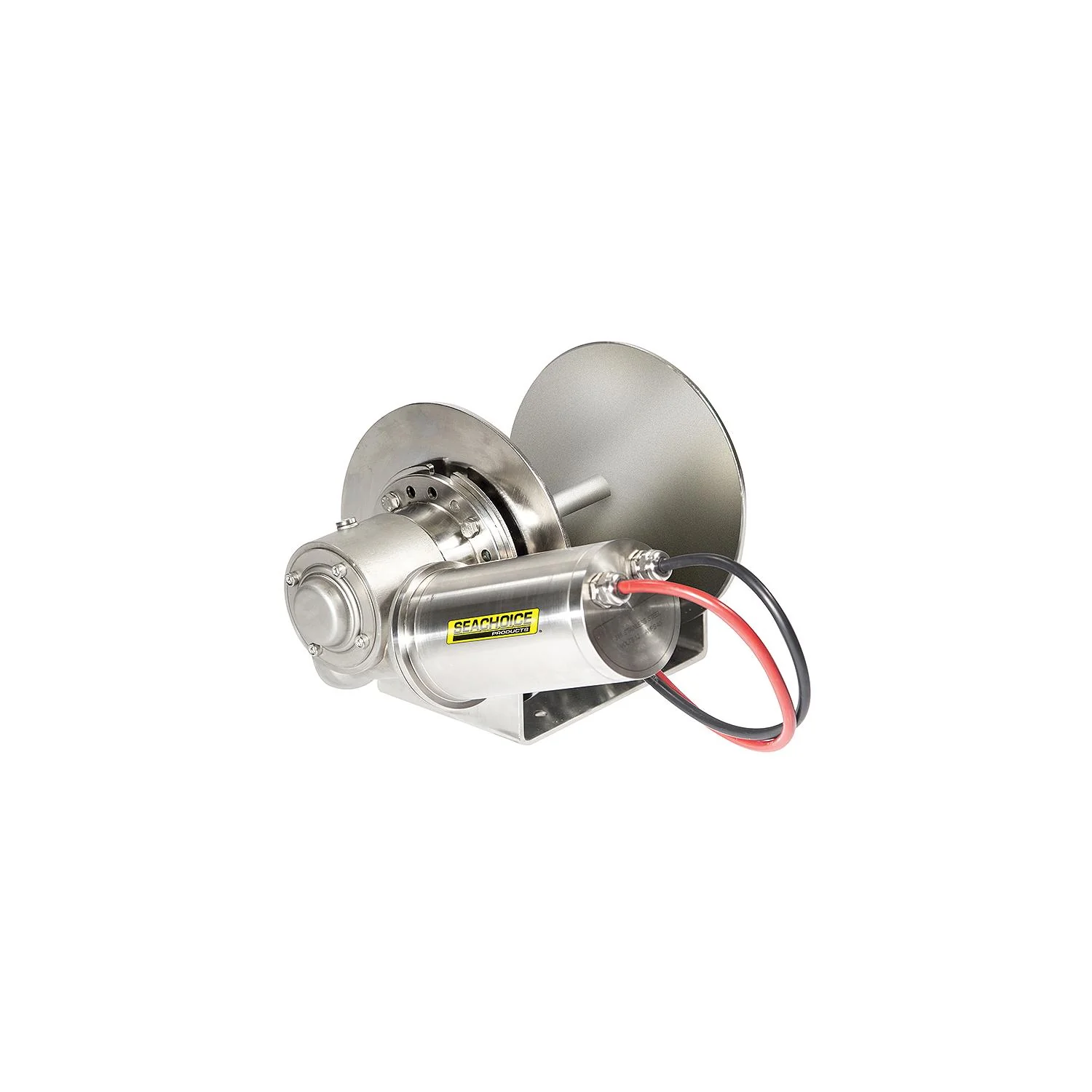

Seachoice 6019 Deluxe 4000 Series Stainless Steel Drum Winch 320 lb Capacity

The Seachoice 6019 Deluxe 4000 Series Drum Winch represents the pinnacle of marine anchoring technology, featuring premium all-316 stainless steel construction for unmatched corrosion resistance and durability. Designed for boats up to 50 feet, this professional-grade electric winch delivers 320 lb maximum capacity with a powerful 12V motor drawing 135 amps and producing 1,250 watts.

Premium Construction:

• 316 stainless steel drum with 16-inch spool capacity
• Fully submersible 316 stainless steel motor casing
• 316 stainless steel gearbox for maximum corrosion resistance
• Sealed 316 stainless steel terminals
• Dimensions: 20-3/8" W x 20-7/16" D x 16-3/8" H

Key Features:

• Tangle-free operation with rope and chain feeding directly onto drum
• Energy efficient design with low power consumption
• Quiet performance during operation
• Multiple mounting positions for flexible installation
• Automatic locking mechanism eliminates need to tie off rope
• Compatible with optional Fast Fall System (#53741) for rapid anchor deployment

Includes:

• Up/down control switch
• Solenoid
• Circuit breaker

Spool Capacity (16-inch Spool):

• 1,296 feet of 5/16" line plus 33 feet of 1/4" chain
• 803 feet of 7/16" line plus 33 feet of 1/4" chain
• 508 feet of 1/2" line plus 33 feet of 1/4" chain
• 246 feet of 5/8" line plus 33 feet of 1/4" chain

This Seachoice SSS Deluxe model offers superior performance compared to traditional windlass systems by reducing rope wear, preventing tangles, and providing faster, more reliable anchoring. The solid machined stainless steel motor casing is a Seachoice exclusive in the industry, ensuring years of trouble-free marine service even in harsh saltwater environments.
