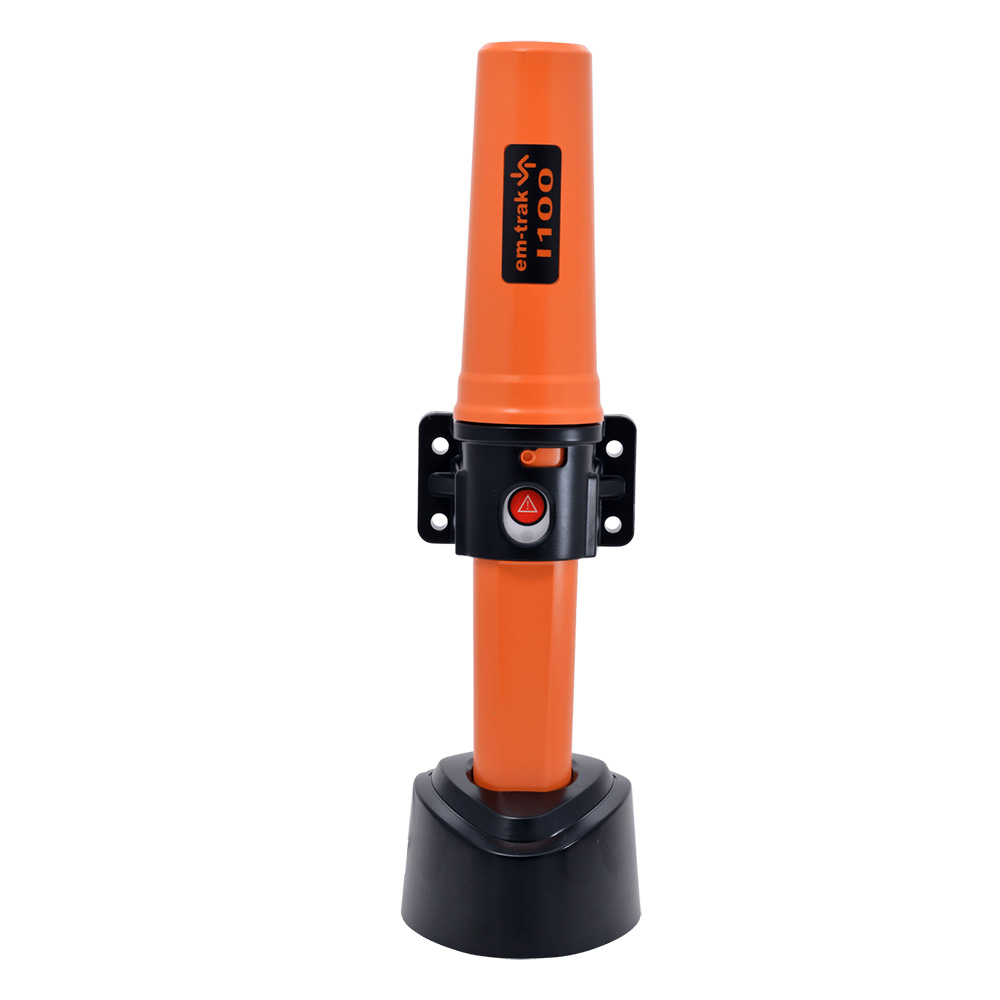

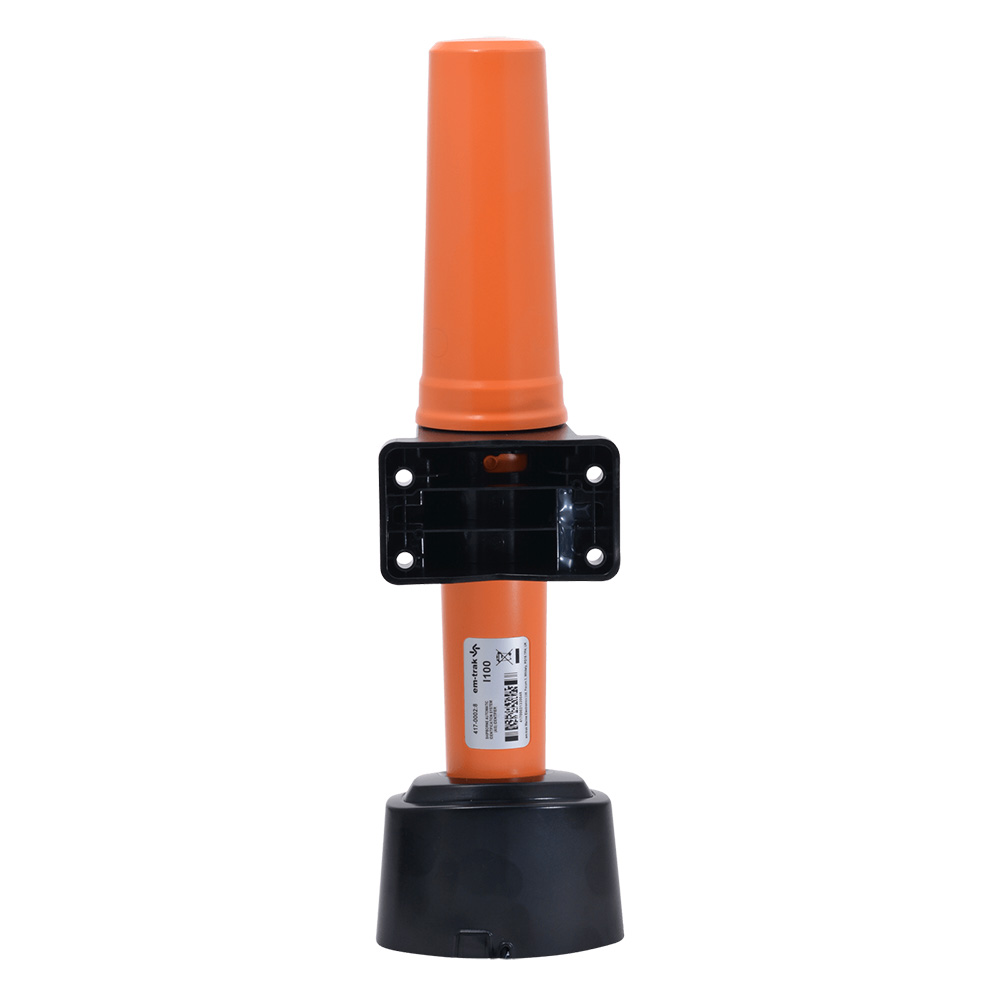

Em-Trak Marine Electronics 417-0077 I100-X AIS Class B Vessel Tracker

The Em-Trak I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder designed for reliable small vessel tracking and monitoring in demanding marine environments. This portable tracking solution combines advanced positioning technology with exceptional durability for commercial and recreational marine applications.

Power and Battery Performance:

• Internal rechargeable 2300mAh Li-Ion battery provides over 120 hours of continuous operation
• Rapid recharge capability with included charging dock (fully charged in 5 hours)
• Dual power options: operate on internal battery or connect to vessel power sources (engine, battery, or solar)
• Automatic battery backup when connected to external power

Rugged Construction:

• IPx8 waterproof certification (submersible to 1.1m for 30 minutes)
• Operating temperature range: -25°C to +55°C (-13°F to 131°F)
• Engineered to withstand extreme heat, cold, humidity, shock, and vibration
• Compact dimensions: 370mm x 67mm (14.6" x 2.6")
• Lightweight at 355g (0.78 lbs) for easy deployment

Technical Specifications:

• Certified AIS Class B transponder compliant with IEC 62287-1 Ed.3 and ITU-R M.1371.5 standards
• GNSS support for GPS and GLONASS positioning systems with 72 channels
• VHF transceiver operating on 156.025MHz - 162.025MHz with CSTDMA access scheme
• 2W AIS transmitter power for reliable signal transmission
• Fast first fix from cold start in 26 seconds
• SOS button and status indicator for emergency situations

Kit Includes:

• I100-X transponder unit
• Mounting bracket with fixings pack
• Rapid charging dock with 115V/240V AC power supply
• USB cable for PC interface

Important Note: A separate configuration dock (part code 417-0074 or 417-0047) is required for programming the unit before deployment. FCC regulations require all units sold in the United States to be programmed by a qualified technician with valid MMSI registration or FCC Ship Station License documentation.

The I100-X provides flexible installation options for temporary deployments or permanent installations, making it ideal for tracking workboats, tenders, small commercial vessels, and recreational craft operating in coastal or inland waters.
