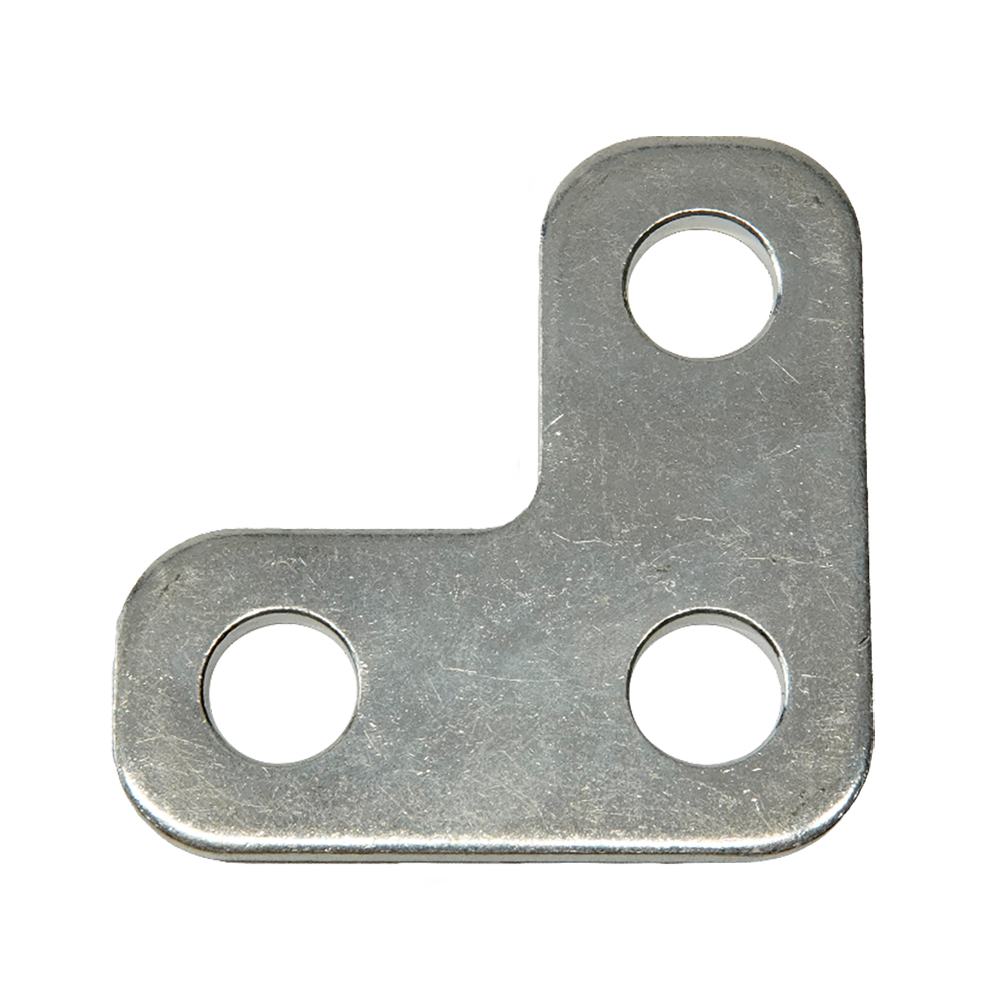

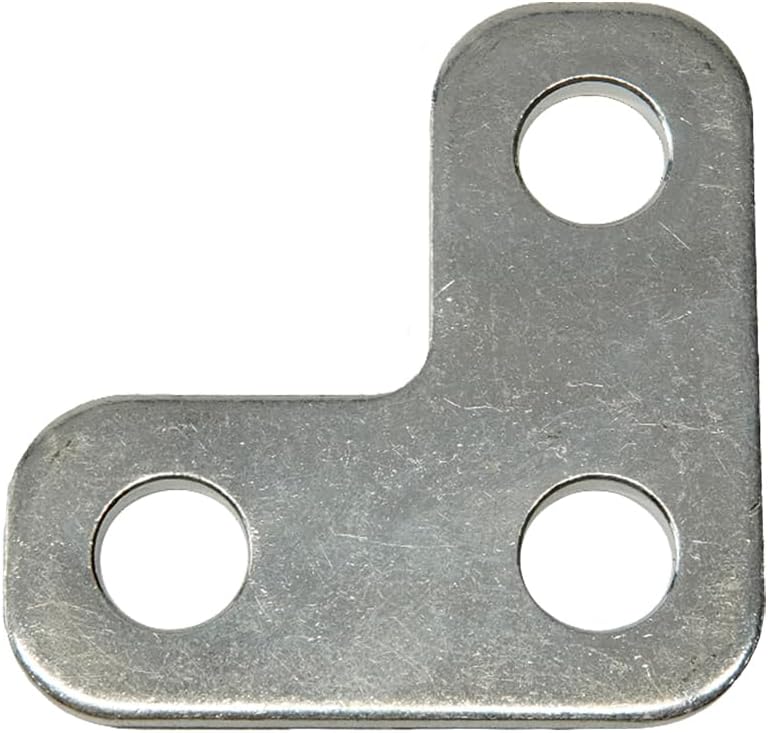

Egis Mobile Electric 8793 L-Shaped Busbar Connector 3 Hole M8/M10

The Egis Mobile Electric 8793 is a heavy-duty L-shaped busbar connector designed for linking multiple electrical components in compact mobile and marine installations. This 3-hole busbar enables seamless connection of XD relays, sealed fuse blocks, and other high-current distribution components.

Key Features:

• Tin-plated copper construction ensures superior conductivity and long-term corrosion resistance
• L-shaped design allows for space-efficient right-angle connections in tight mounting situations
• Three mounting holes accommodate M8 or M10 hardware for flexible installation options
• Rated for continuous operation at 500 amps and up to 72 volts DC
• Heavy 2.8mm (1/8") thickness provides robust mechanical strength and heat dissipation
• 10.5mm (3/8") terminal stud holes for secure high-current connections

Specifications:

• Continuous Current Rating: 500 Amps
• Maximum Voltage: 72 VDC
• Material: Tin-Plated Copper
• Dimensions: 90mm x 90mm
• Thickness: 2.8mm (1/8")
• Terminal Hole Size: 10.5mm (3/8")
• Mounting Holes: 3 (M8/M10 compatible)

Ideal for automotive, marine, RV, and mobile equipment electrical systems requiring reliable high-current distribution in a compact footprint.
