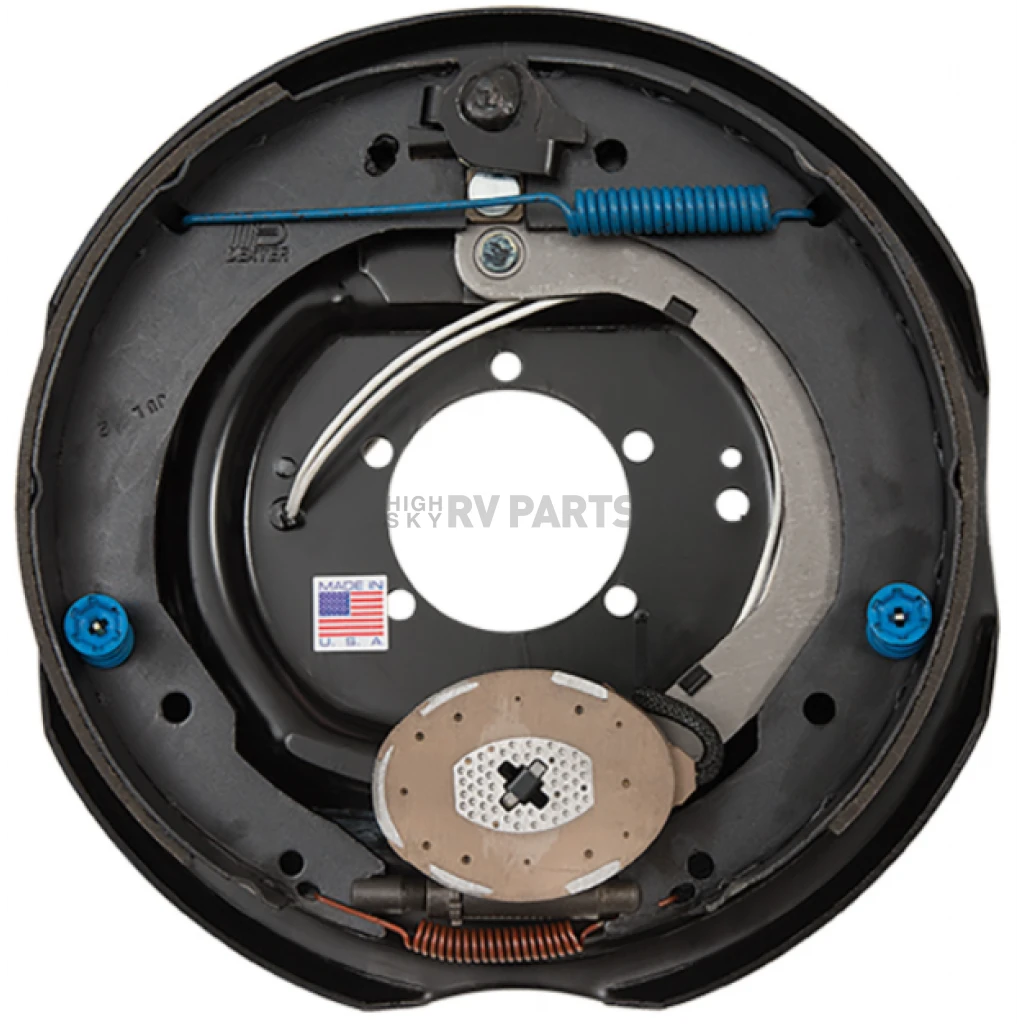

Dexter Marine Products K23-113-00 Electric Brake Assembly 12x2 Right Hand with Parking Brake

The Dexter K23-113-00 is a complete 12-inch by 2-inch right-hand electric brake assembly with integrated parking brake, designed for trailer axles with a 6,000 lb capacity. This assembly mounts to a 5-hole axle brake flange and provides reliable stopping power for marine trailers, utility trailers, and recreational vehicle applications.

Key Features:

• 6,000 lbs maximum capacity
• Right-hand (passenger side) mounting configuration
• Mechanically operated parking brake with cable actuation
• Complete brake assembly with shoes, springs, and magnet pre-installed on backing plate
• White wire magnet for easy identification
• 5-bolt flange mounting pattern

This electric brake assembly functions similarly to automotive drum brakes but uses an electromagnet for actuation instead of hydraulic pressure. The K23-113-00 arrives fully assembled and ready to install, making it an excellent replacement or upgrade for trailer braking systems. The integrated parking brake feature provides added security when the trailer is parked on inclines or during extended storage.

Compatibility: Genuine Dexter axle part number 023-113-00. This brake assembly is designed for Dexter 6K axles and is commonly used on boat trailers, utility trailers, and other marine applications requiring dependable braking performance.
