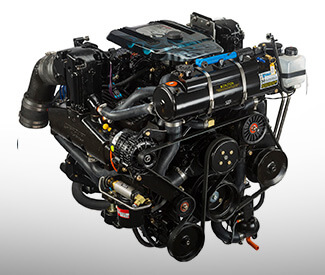

The Mercury Quicksilver 383 MPI Bravo FWC is a fully dressed, complete marine sterndrive engine designed as an ideal replacement for 350 MAG, 7.4L, and 7.4L MPI engines in single and twin engine applications. This 6.3-liter (383 cubic inch) stroker engine delivers impressive performance with 350 horsepower at 5200 RPM and 390 lb-ft of torque at 4200 RPM.
Engine Block and Construction:
- 100% new Quicksilver cast iron engine block and cylinder heads
- Black-X valve technology with hardened valve seats
- Screw-in rocker studs and 1.6:1 roller rocker arms
- Bore and stroke: 4.030" x 3.750" (102mm x 95mm)
- Compression ratio: 9.0:1
- Runs on 87 octane fuel with up to 10% ethanol tolerance
Cooling and Fuel Systems:
- Factory fresh water cooling (FWC) system protects engine block and exhaust manifolds
- Closed cooling system ideal for saltwater applications
- Gen II Cool Fuel multi-port electronic fuel injection (MPI)
- Two-piece long runner intake with 75mm throttle body
- High and low-pressure electric fuel pumps
Engine Management and Protection:
- ECM 555 engine control module with knock control and crankshaft trigger
- SmartCraft CAN capability for digital gauge compatibility
- Engine Guardian protection system with audio warnings for oil pressure, coolant temperature, drive lube, and water pressure
- Crank-fired high voltage ignition with iridium spark plugs
Standard Equipment Includes:
- Dry joint exhaust manifolds and risers with electro-deposition coating
- Serpentine belt-driven raw water pump
- 65-amp (917-watt) alternator
- High-flow oil pump and roller camshaft
- All required sensors, oil pressure switch, and sending units
- High torque bottom mount starter
- Multi-point drain system
Compatibility and Application: This engine is compatible with all MerCruiser Bravo sterndrive outdrives and will NOT work with Alpha Series sterndrives. The 383 stroker delivers better acceleration and improved fuel economy compared to larger displacement 7.4L engines, making it perfect for cruisers, tow boats, and large runabouts.
Warranty and Compliance: Backed by a 3-year Mercury Marine factory warranty. CARB and EPA compliant. Note: EPA regulations require the old engine to be returned to MerCruiser along with boat hull identification numbers and related documentation.
