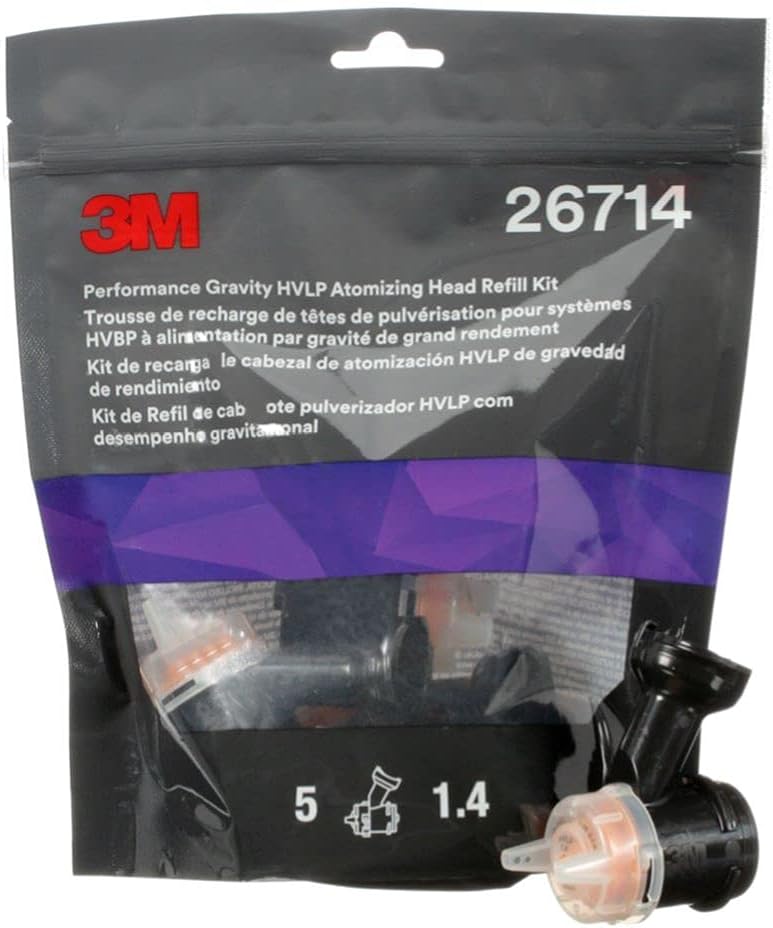

The 3M Performance Gravity HVLP Atomizing Head Refill Kit is designed to deliver premium spray performance for coatings including paints, clear coats and topcoats. This kit features quick-change nozzles for spraying industrial and automotive coatings with the 3M Performance Spray Gun, delivering like-new spray performance with each new atomizing head.
Key Features:

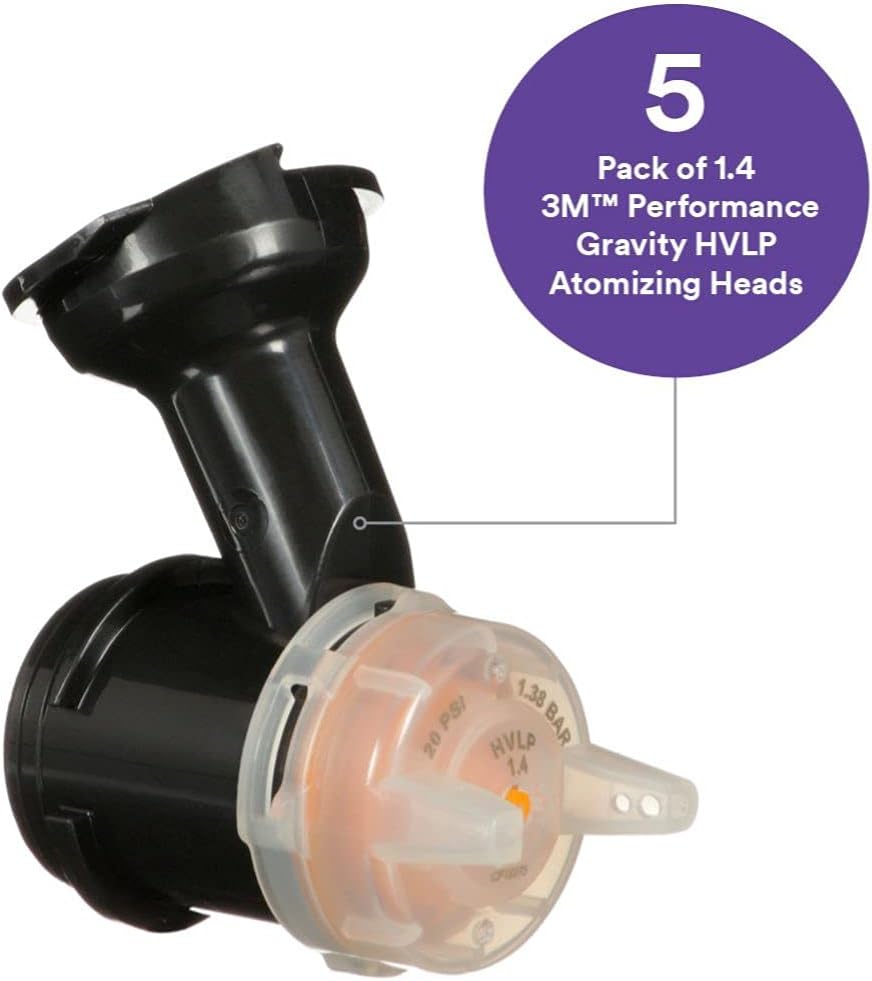

- 1.4mm (Orange) atomizing head nozzle size - 5 atomizing heads per pack
- Replaceable nozzles built exclusively for gravity feed applications with the 3M Performance Spray Gun System and 3M PPS Series 2.0 Spray Cup System
- Exceptional pattern control, atomization and transfer efficiency
- Nozzle rotates for vertical and horizontal spraying
- No additional tools required for changeouts
- Recommended air inlet pressure is 20 psi (1.38 Bar) for gravity feed
- Required atomizing air volume is 13 cfm
What makes the 3M Performance Spray Gun system different is the technology inside the quick-change replaceable nozzles - because paint and coatings never pass through the body of the spray gun and only the atomizing head, it's like getting a brand-new spray gun every time you swap the nozzle. The 1.4mm size is ideal for spraying a wide range of industrial and automotive coatings, including high-viscosity coatings, sprayable fillers, high-build primers, primer surfacers, sealers, single-stage top coats, solvent-based paints, waterborne paints and clearcoats.
The atomizing heads attach to the 3M Performance Spray Gun needle and are tightly secured to the spray gun with a specially-designed locking collar. The replaceable nozzles are used exclusively with the gravity-fed 3M PPS Series 2.0 Spray Cup System, which helps to reduce material waste, mess and contamination compared to traditional metal paint cups.
Applications: 1.4 Size nozzle ideal for clearcoat, solvent base colour, single stage top coat, direct gloss, primer sealer, wet on wet primer, primer surfacer, high build primer
Note: For industrial/occupational use only. Not for consumer sale or use.
