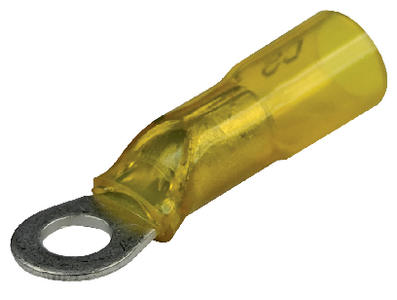

Seachoice 62361 Marine Heat Shrink Ring Terminal 12-10 AWG #8 Stud

The Seachoice 62361 marine-grade heat shrinkable ring terminals provide professional-quality electrical connections for 12-10 gauge wire applications. These terminals feature 99.9% pure copper construction with a brazed seam barrel and tin plating for superior conductivity and corrosion resistance in harsh marine environments.

Advanced Heat Shrink Technology:

The proprietary nylon/polyolefin 3:1 shrink ratio tubing with adhesive lining provides maximum clarity for wire inspection purposes, faster shrink times and improved abrasion resistance. Simply insert the wire, crimp and heat shrink for a complete environmental seal. The clear tubing allows you to verify proper wire insertion before and after crimping.

Specifications:

• Wire Range: 12-10 AWG
• Stud Size: #8
• Color: Yellow (industry-standard for 12-10 gauge)
• Quantity: 3 terminals per pack
• Shrink Ratio: 3:1
• Adhesive-lined heat shrink tubing

Installation:

Installation is quick and straightforward. Strip the wire to the appropriate length, insert it fully into the terminal barrel, crimp using a quality crimping tool, then apply heat using a heat gun to activate the shrink tubing and adhesive liner. The result is a waterproof, vibration-resistant connection that meets marine electrical standards.

Ideal for boat wiring, bilge pump connections, navigation light circuits, and any marine electrical application requiring reliable 12-10 gauge ring terminal connections to #8 studs.
