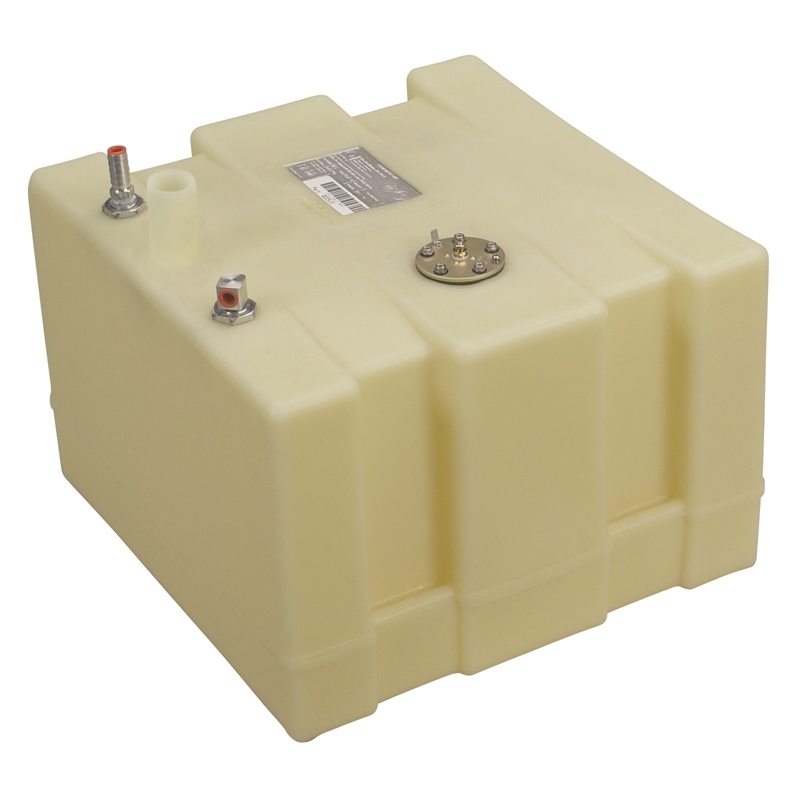

Moeller 32515 15 Gallon Below Deck Permanent Marine Fuel Tank

The Moeller 32515 is a 15-gallon permanent below deck fuel tank constructed from cross-linked polyethylene, offering superior corrosion and pit resistance while being ethanol and biodiesel compliant. This rotationally molded tank allows for complex shape designs beyond conventional aluminum tanks, making it an ideal replacement or upgrade for marine fuel systems.

Key Features:

• Tank dimensions: 18.50" L x 17.75" W x 12.50" H with 15 gallon (57 liter) capacity
• Machined aluminum 3/8" withdraw fitting with 360° rotational capability for hook-up convenience
• Features Hose Tite™ machined aluminum fill spouts, withdrawals, and vent fittings molded directly into the shell
• Equipped with Stewart Warner electric sending unit compatible with industry standard gauges
• UV rating of 8 with temperature rating from -40°F to 176°F
• Convenient hold-down grooves molded directly into tank shell
• Conforms to all ABYC, NMMA, and US Coast Guard regulations

The tank features ABYC-compliant fittings with seamless connections to rigid low-perm hoses, ensuring reliable and safe fuel system operation. All fittings meet E10 requirements, making this tank compatible with modern ethanol-blended fuels. Suitable for both gasoline and diesel applications.

Installation Note: Add 2-1/8" to tank height dimension to accommodate fill height. Compatible with Moeller hold-down kits 035710 or 300110 for proper tank securing.
