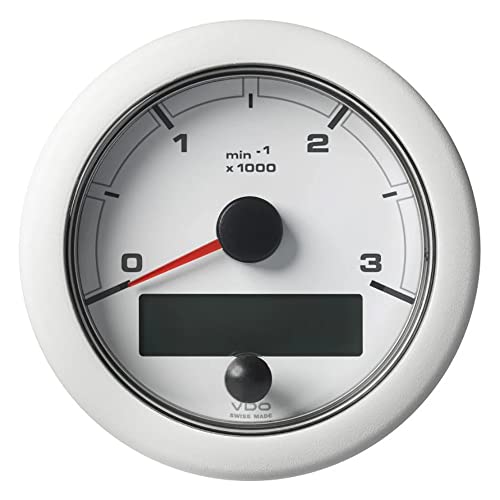

VDO Gauges A2C1065670001 Marine OceanLink Tachometer 3000 RPM 3-3/8" White

The VDO OceanLink A2C1065670001 is a 3-3/8" (85mm) digital tachometer designed for marine applications, featuring a white dial and bezel with a 3000 RPM range. This advanced instrument automatically displays critical engine data including oil pressure, fuel consumption, and operating hours on a large inverted dot matrix digital display.

Key Features:

• NMEA 2000® certified CAN interface with SAE J1939 data protocol
• Dual input capability: 1x NMEA 2000® input and 1x J1939/analog input
• Innovative EasyLink data connection for simplified, cost-effective installation
• 20 millisecond update rate to satellite instruments for real-time data
• Reverse polarity protection for safe installation
• IPX5 protection rating for water resistance
• Wide operating temperature range: -20°C to +70°C (-4°F to +158°F)
• 12/24V dual voltage compatibility

The OceanLink system allows satellite instruments to receive continuous updates from the central tachometer, creating an integrated network of marine gauges. The generously sized digital display ensures readability in all lighting conditions, while the analog sensor inputs provide flexibility for custom installations.
