The Balmar 621VUPMC100J10 is a complete 100-amp, 12-volt marine alternator charging kit built around the popular 621-Series small-case alternator. Designed as a high-output upgrade or direct OEM replacement for a wide range of marine gasoline and diesel engines, this kit delivers everything needed for a full charging system installation in a single package.

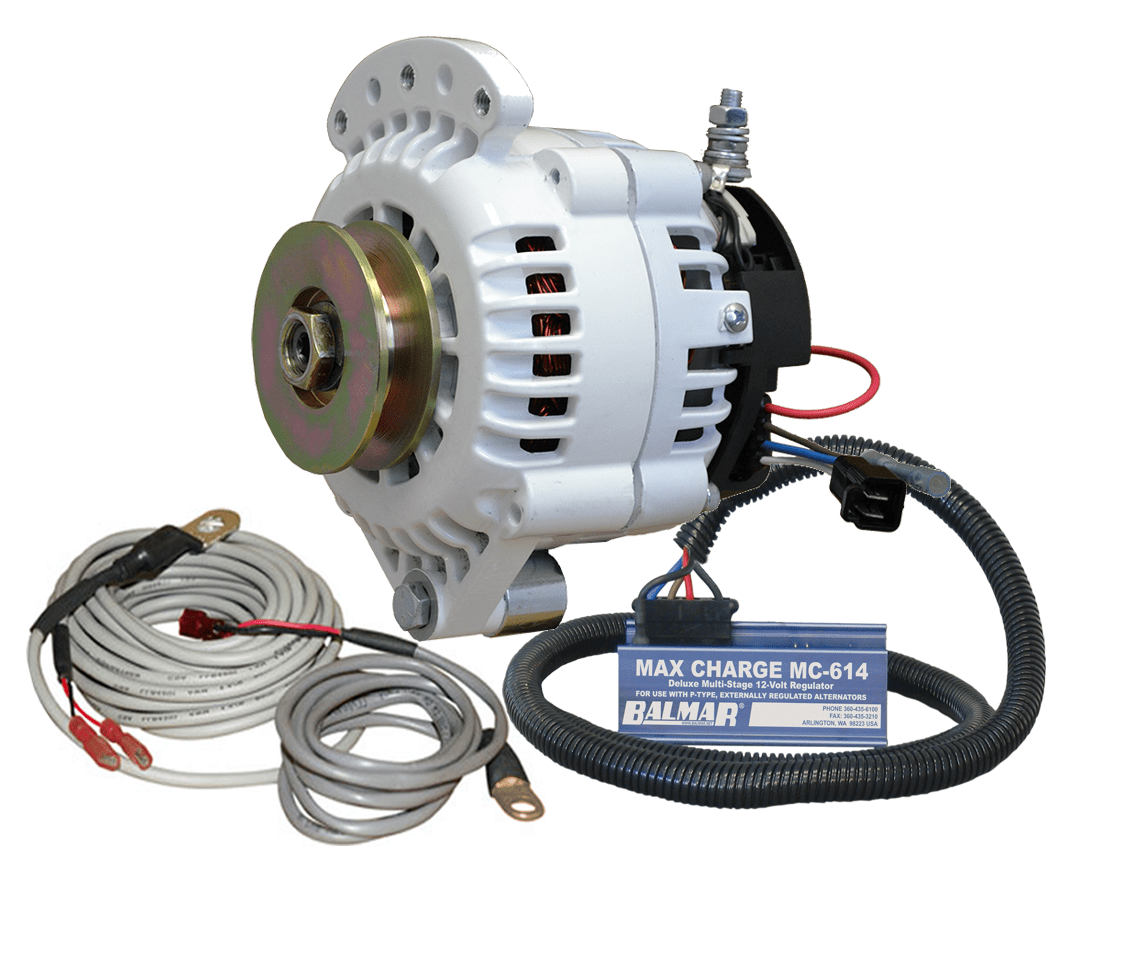

What's Included:
- 621-100-J10 Alternator — 100A, 12V, Spindle Mount (Single Foot), 1–2 in., J10 AltMount Serpentine Pulley, Isolated Ground
- MC-614 Max Charge Multi-Stage External Voltage Regulator
- Alternator Temperature Sensor
- Battery Temperature Sensor
- Mounting hardware
Alternator Specifications:
- Output: 100 Amps / 12 Volts
- Mounting Style: Single Foot (Spindle) — fits 1" Motorola-style and 2" Delco-style engine configurations
- Pulley: J10 AltMount Serpentine
- Case: Ventilated cast aluminum with high-impact plastic rear cover
- Finish: White powdercoat
- Cooling: Dual internal fans
- Bearings: Sealed ball bearing (heavy-duty radial front and rear)
- Tensioning Arm: Five-position crown, M8 x 1.25
- Internal Voltage Regulation: 14.1V fixed (SmartReady™)
- Low RPM Cut-In / Max RPM: 1,320 RPM / 15,000 RPM
- Normal / Max Operating Temp: 180°F (82°C) / 225°F (108°C)
- Grounding: Dedicated isolated ground terminal
- Ignition Protection: USCG Title 33, ISO J1187, SAE J1171, CE Compliant
SmartReady™ Technology:
A standout feature of the 621-Series, SmartReady™ internal regulation allows this alternator to operate either as a stand-alone, internally regulated unit or in conjunction with an external multi-stage regulator. The fixed 14.1-volt internal regulator serves as an ideal built-in backup for cruisers, or as a full-time regulator for simpler electrical systems that don't require advanced multi-stage charging profiles.
Common Engine Applications (1" Motorola-Style Mount):
- Westerbeke, Lehman, Hino, and Pathfinder engines
Common Engine Applications (2" Delco-Style Mount):
- Volvo Penta (Gas & Diesel), John Deere, Perkins, MerCruiser, Pleasurecraft, Crusader, Indmar, Marine Power, and other GM-based engines
The included MC-614 Max Charge regulator provides intelligent multi-stage charging for flooded, gel, AGM, Optima, and other deep-cycle marine battery technologies, maximizing battery health and reducing charge times. This kit is particularly well-suited for vessels with larger battery banks or less frequent engine run cycles, such as sailboats and cruising powerboats.
