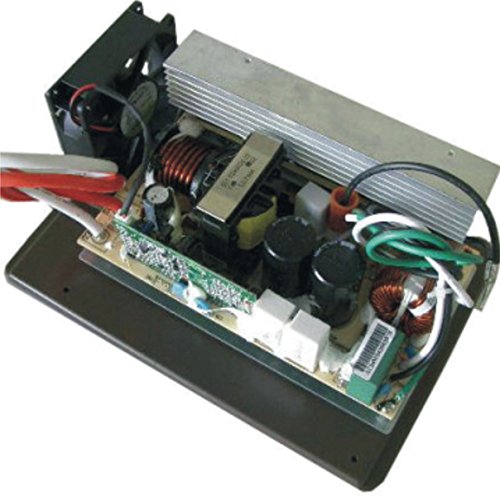

Arterra Distribution WF-8965MBA 65 Amp RV Power Converter Main Board Assembly

The Arterra Distribution WF-8965MBA is a 65-amp replacement main board assembly designed for the WF-8900 Series RV power converters. This critical component replaces the lower power converter section and restores proper charging and power distribution functions to your RV's electrical system.

Key Features:

• 65-amp DC output capacity with 1260-watt power output
• Three-stage automatic charging system (Normal 13.6V, Trickle 13.2V, Bulk 14.4V)
• Quick 10-minute installation with only two screws, three AC wires, and two DC wires
• Compatible with all WF-8900 Series power centers
• Automatic cooling fan that operates only when needed for quieter operation
• UL and cUL listed for safety compliance
• FCC Class B compliant to prevent interference with electronics
• Electronic current limiting protects against overload and short-circuit conditions

Specifications:

• Input Voltage: 105-130 VAC, 60 Hz
• Output Current: 65 Amps DC
• Dimensions: 7.06" W x 3.88" H x 9.5" D
• Weight: 8 lbs

This main board assembly extends battery life through intelligent multi-stage charging that handles every charging need while preventing overcharging. The converter operates with or without a battery installed and includes reverse polarity fuse protection to prevent damage from incorrect battery connections.
